Brand: Panduit
|
SKU:
PAN-P8-56R-EA

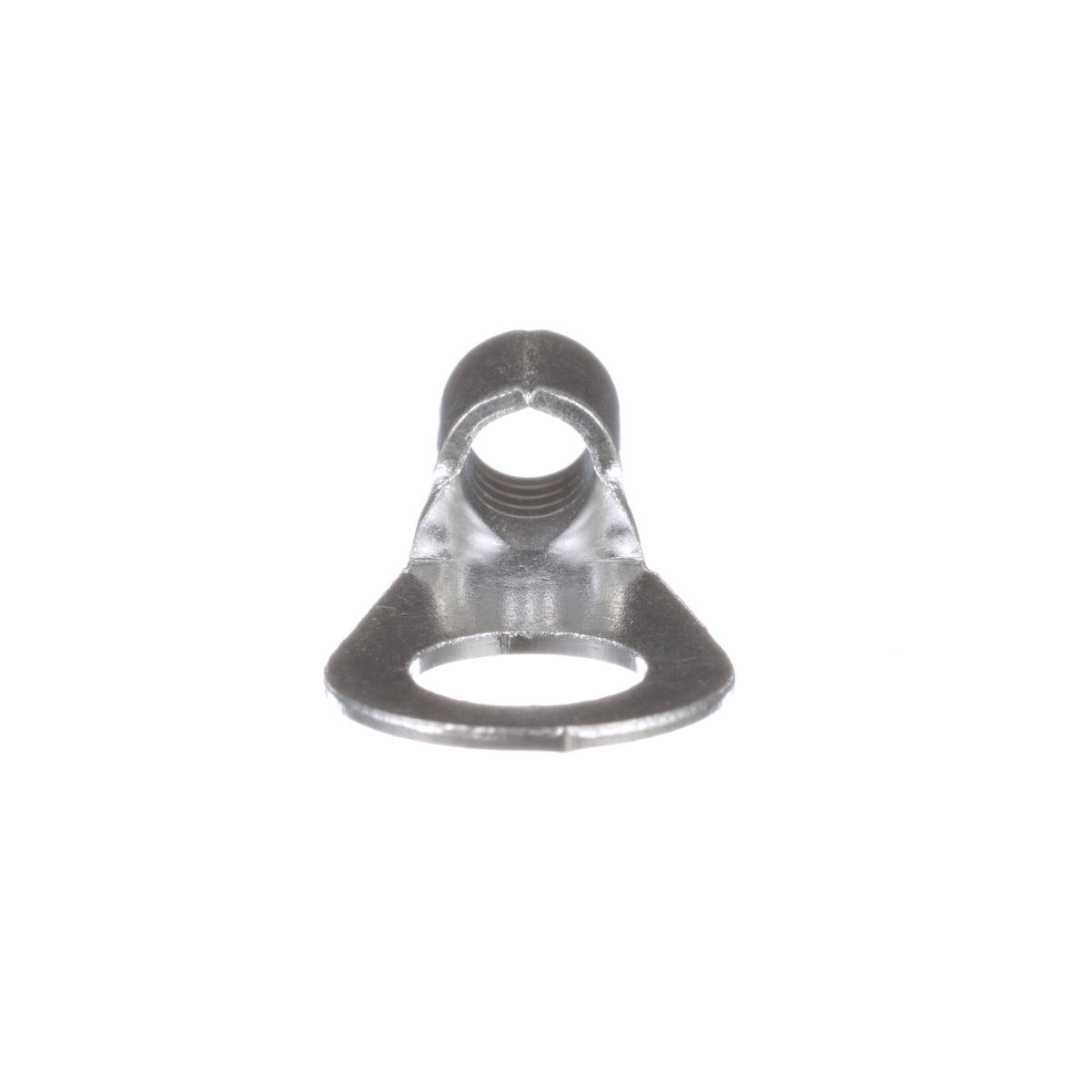

Panduit P8-56R-T | Loose Piece Ring Terminal | UPC - 07498387086
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P8-56R-T | Loose Piece Ring Terminal | UPC - 07498387086
Regular price
$1.47
Unit price
Description
Description
Panduit Pan-Term Ring Terminal, Non-Insulated, Series: P-R, Stranded Conductor, 8 AWG Conductor, 5/16 in Stud, 1-1/4 in Length, Brazed Seam Barrel, 0.19 in ID x 0.27 in OD Barrel, Ring Tongue, 0.59 in W x 0.06 in THK Tongue, 2000 VAC, 3/8 in L Wire Strip, 0.51 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Panduit P8-56R-T | Loose Piece Ring Terminal | UPC - 07498387086 Key Specs
| Stud Hole Size (In.) | 5/16 |
| Insulation Material | Non-Insulated |
| Maximum Wire Size (AWG) | #8 |
| Minimum Wire Size (AWG) | #8 |
| Wire Strip Length (In.) | 3/8 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | UL 486A/B, and CSA 22.2 No.65 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.27 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 6.9 |
| Inside Diameter (In.) | 0.19 |
| Inside Diameter (mm) | 4.8 |
| Sub Brand | Pan-Term |
Panduit P8-56R-T | Loose Piece Ring Terminal | UPC - 07498387086 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #8 Barrel Non-Insulated Ring Tongue .280 [7.11] Max. Wire Insul. Diameter | Download and View |
| Videos | Success Depends on the Crimp Training Video 16:9 BS10-D | Download and View |
Panduit P8-56R-T | Loose Piece Ring Terminal | UPC - 07498387086 Environmental Information
| Panduit's RoHS Statement | Download and View |
