Brand: Panduit
|
SKU:
10044651

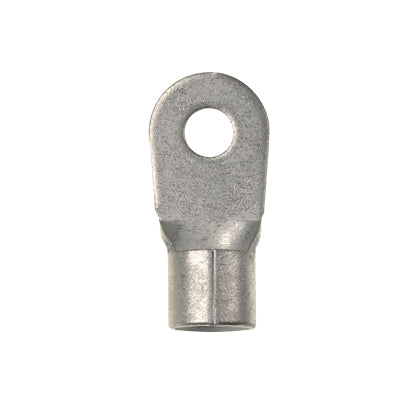

Panduit P8-8RN-T | Ring Terminal | UPC - 07498399867
Regular price
$141.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P8-8RN-T | Ring Terminal | UPC - 07498399867
Regular price
$141.14
Unit price
Description
Description
Panduit Pan-Term Ring Terminal, Loose Piece Non-Insulated, Series: P-RN, Stranded Conductor, 8 AWG Conductor, #8 Stud, 1.09 in Length, Brazed Seam Barrel, 0.19 in ID x 0.27 in OD Barrel, Narrow Ring Tongue, 0.36 in W x 0.06 in THK Tongue, 2000 VAC, 3/8 in L Wire Strip, 0.43 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit P8-8RN-T | Ring Terminal | UPC - 07498399867 Key Specs
| Stud Hole Size (In.) | 1/6 |
| Stud Hole Size (mm) | 4.3 |
| Stud Size | #8 |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #8 |
| Maximum Copper Conductor Size (AWG STR) | #8 |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | #8 |
| Wire Strip Length (In.) | 0.41 |
| Wire Strip Length (mm) | 10.4 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.46 |
| Barrel Length (mm) | 11.6 |
Panduit Panduit P8-8RN-T | Ring Terminal | UPC - 07498399867 Environmental Information
| Panduit's RoHS Statement | Download and View |
