Brand: Panduit
|
SKU:
10332197
Panduit PATMFM4.0 | PATMFM4.0 Flushmount PAT4.0 Accessory
Regular price
$3,500.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PATMFM4.0 | PATMFM4.0 Flushmount PAT4.0 Accessory
Regular price
$3,500.33
Unit price
Description
Description
Panduit PATMFM4.0 | PATMFM4.0 Flushmount PAT4.0 Accessory

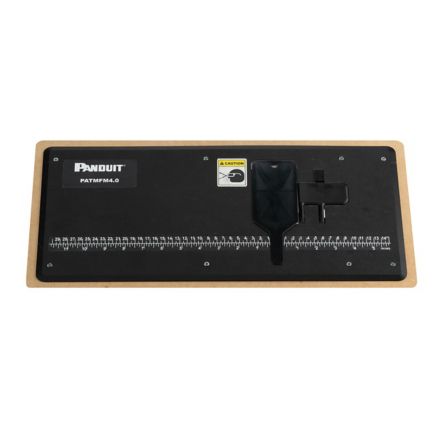

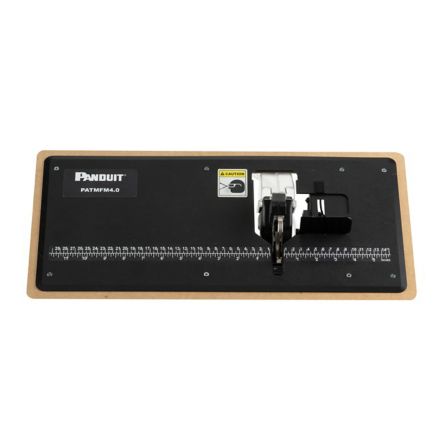

Panduit PATMFM4.0 flushmount fixture accessory for PAT4.0 eliminates the need to lift wire or cable bundle from work surface. It includes a hand actuated paddle that eliminates the traditional foot pedal common to bench mounts. It also includes an integral measuring device useful for applying cable ties for desired interval spacing.
Panduit PATMFM4.0 | Patmfm4.0 Flushmount Pat4.0 Accessory
Panduit - PATMFM4.0 - Features
- Panduit PATMFM4.0 flushmount fixture accessory for PAT4.0 eliminates the need to lift wire or cable bundle from work surface. It includes a hand actuated paddle that eliminates the traditional foot pedal common to bench mounts. It also includes an inte gral measuring device useful for applying cable ties for desired interval spacing.
Specifications
Specifications
Panduit - PATMFM4.0 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Installation Tools & Accessories
Panduit - PATMFM4.0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PATMFM4.0 |
| Item Description | PATMFM4.0 Flushmount PAT4.0 Accessory |
| Application | Bring the work piece to the tool for convenient application of cable ties at desired intervals |
| Note | Requires a table or work surface that could be modified with a 7.00" x 7.90" (177.8mm x 200.7mm) opening, following the included cut-out template. Minimum table/surface thickness 1.00" (25.4mm). Requires a PAT4.0 Tool System (PDM4.0 with PAT toolhead and PHM feeder hose). |
| Product Type | Automatic Cable Tie Tool - Accessories |
| Color | Black |
| Includes | Mounting plate assembly with integral paddle; Tool head mounting cage; Data cable (connection to PDM4.0 dispenser EI interface); Regulator assembly; Mounting template |
| For Use With | PAT1M4.0, PAT1.5M4.0, PAT1M4.0-BT, and PAT1.5M4.0-BT tools |
Panduit - PATMFM4.0 - Package Information
| UPC | 61305679286 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.5625 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - PATMFM4.0 - Videos
| Video 1 | Click to View |
|---|
