Brand: Panduit
|
SKU:
568331

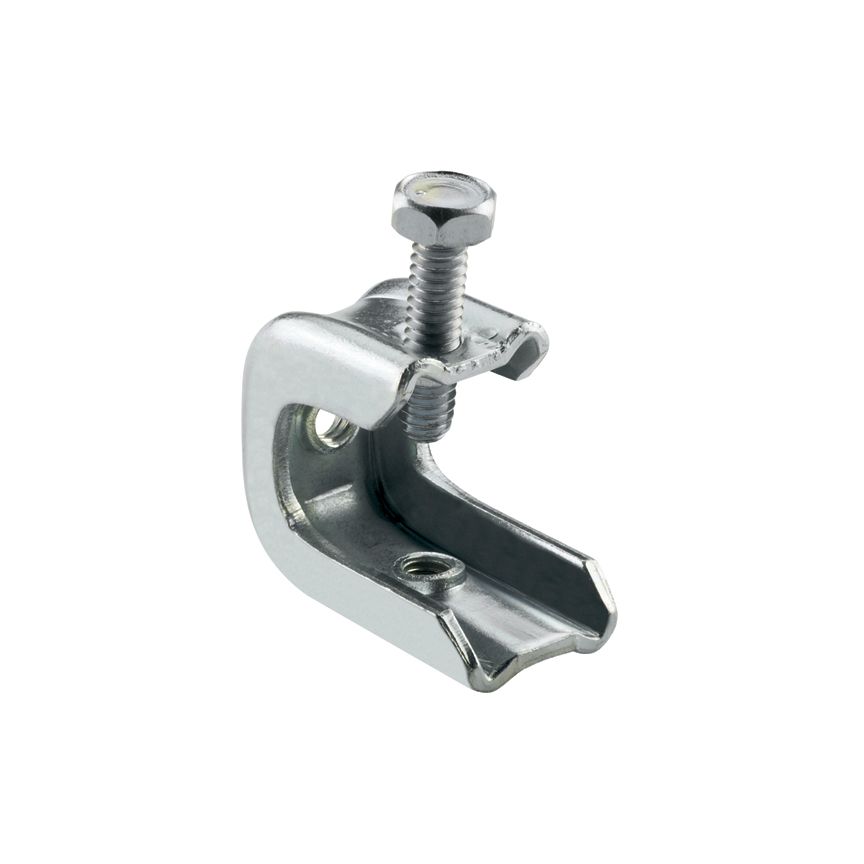

Panduit PBC200 | StrongHold Screw-On Bracket
Regular price
$7.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PBC200 | StrongHold Screw-On Bracket
Regular price
$7.02
Unit price
Description
Description
Panduit PBC200 | StrongHold Screw-On Bracket
Durable and long-lasting for tough jobsite conditions, our zinc-plated steel clamps easily and quickly secure conduit to beams, ideal for your electrical projects.
Screw-on beam clamp for up to 1/2" flange -zinc-plated, static load capacity: 100 lbs.
Panduit StrongHold Beam Clamp, 1/2 in Flange Thickness, Threaded Mount, 100 lb, For Use With: Upto 1/2 in Flange, 1/4-20 in Back and Bottom Tapped Hole, Steel, Zinc Plated
Panduit - PBC200 - Features
- Hammer on beam clamps allow for easy installation
- Attach rod with friction fit
Specifications
Specifications
Panduit - PBC200 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PBC200 |
| UNSPSC Code | 31162900 |
| Product Type | Bracket |
| Sub Brand | StrongHold |
| Application | Screw on Beam Clamp with Tapped Hole to Accommodate Threaded Rod |
| Color | Silver |
| Finish/Coating | Zinc-Plated |
| Material | Steel |
| Static Load Capacity (lb) | 100 |
| Maximum Flange Thickness (In.) | 1/2 |
| Maximum Compatible Rod Size (In.) | 0.25 |
| Maximum Compatible Rod Size (mm) | 6.35 |
| Mount Method | Screw-On |
| Standards Met | RoHS Compliant |
| Part Features | Suitable for up to 1/2" flange |
| UPC | 07498362859 |
Panduit - PBC200 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8205.70.0090 |
Panduit - PBC200 - Videos
| Panduit PBC200 Video 1 | Click to View |
|---|
