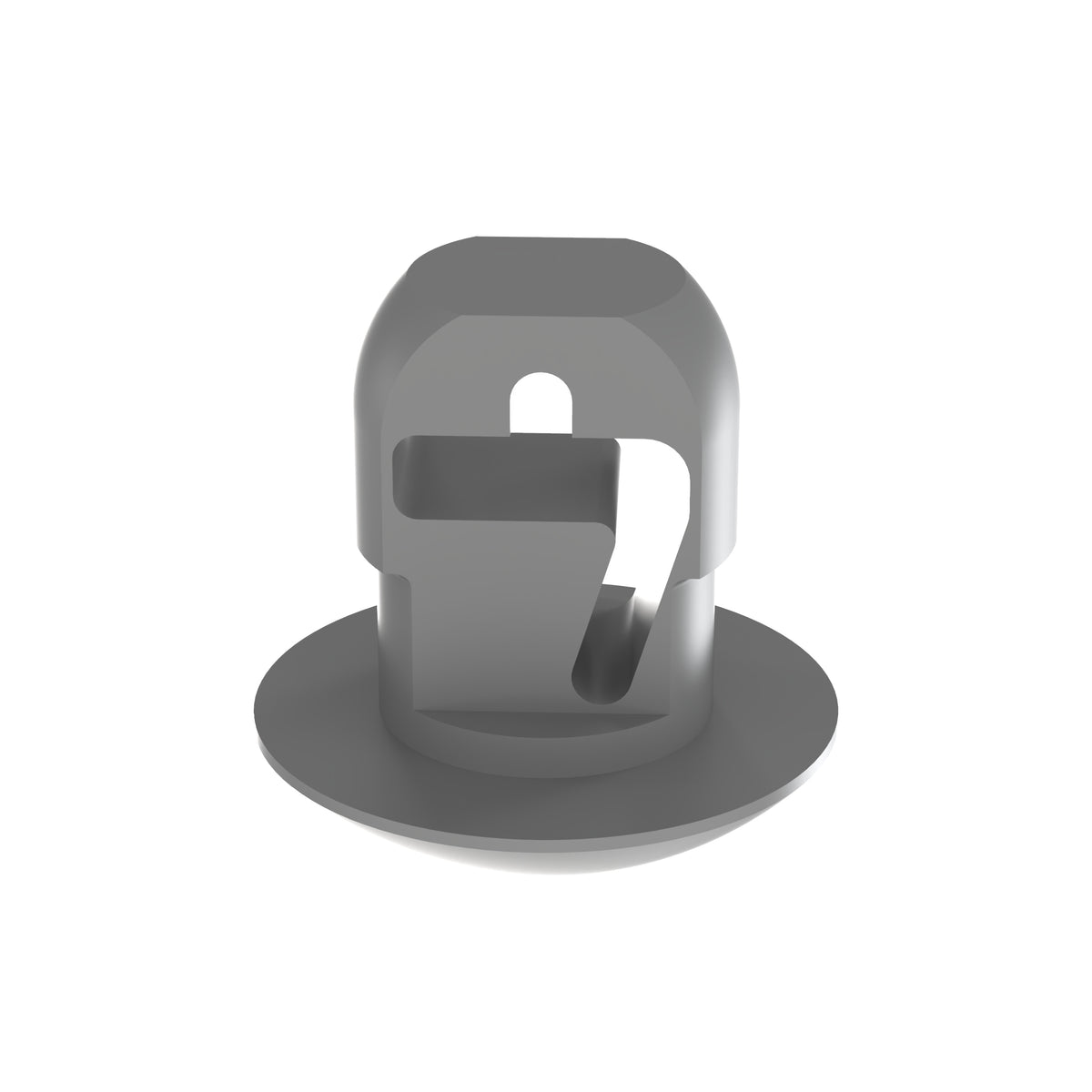

Panduit PBMS-H25-M14 | Push Button Cable Tie Mount
Description
Description
Panduit Push Button Mount, Push Barb Mount, 0.33 in Base Length, 0.42 in Base Dia, Nylon 6.6, Gray
Our push-button cable tie mount offers a quick and easy way to secure cables in panels accessible from both sides. No adhesive or extra hardware needed for a clean installation.
Panduit PBMS-H25-M14 Push Button Cable Mounts can be used where both sides of the panel are accessible and require no adhesive or additional mounting hardware. They have a maximum panel thickness limit of 0.13 (3.2mm) and require a panel hole of 0.25 ( 6.4mm) for mounting. For use in indoor environments and with miniature, Intermediate and standard cable ties. Made of Nylon 6.6, are gray in color and come in packages of 1000.
Panduit - PBMS-H25-M14 - Features
- Applications: Push Button Mounts for Use where Both Sides of the Panel are Accessible
- Requires no adhesive or additional mounting hardware
- Designed for use where both sides of the panel are accessible
Specifications
Specifications
Panduit - PBMS-H25-M14 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Push Button Mounts for Use where Both Sides of the Panel are Accessible |
| Color | Gray |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.13 |
| Maximum Compatible Panel Thickness (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Overall Length (In.) | 0.42 |
| Overall Length (mm) | 10.7 |
| Overall Width (In.) | 0.42 |
| Overall Width (mm) | 10.7 |
| Overall Height (In.) | 0.4 |
| Overall Height (mm) | 10.2 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358368 |
Panduit - PBMS-H25-M14 - Package Information
| UPC | 07498358368 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.0568 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.2839 |
Panduit - PBMS-H25-M14 - Videos
| Panduit PBMS-H25-M14 Videos | Click to View |
|---|
