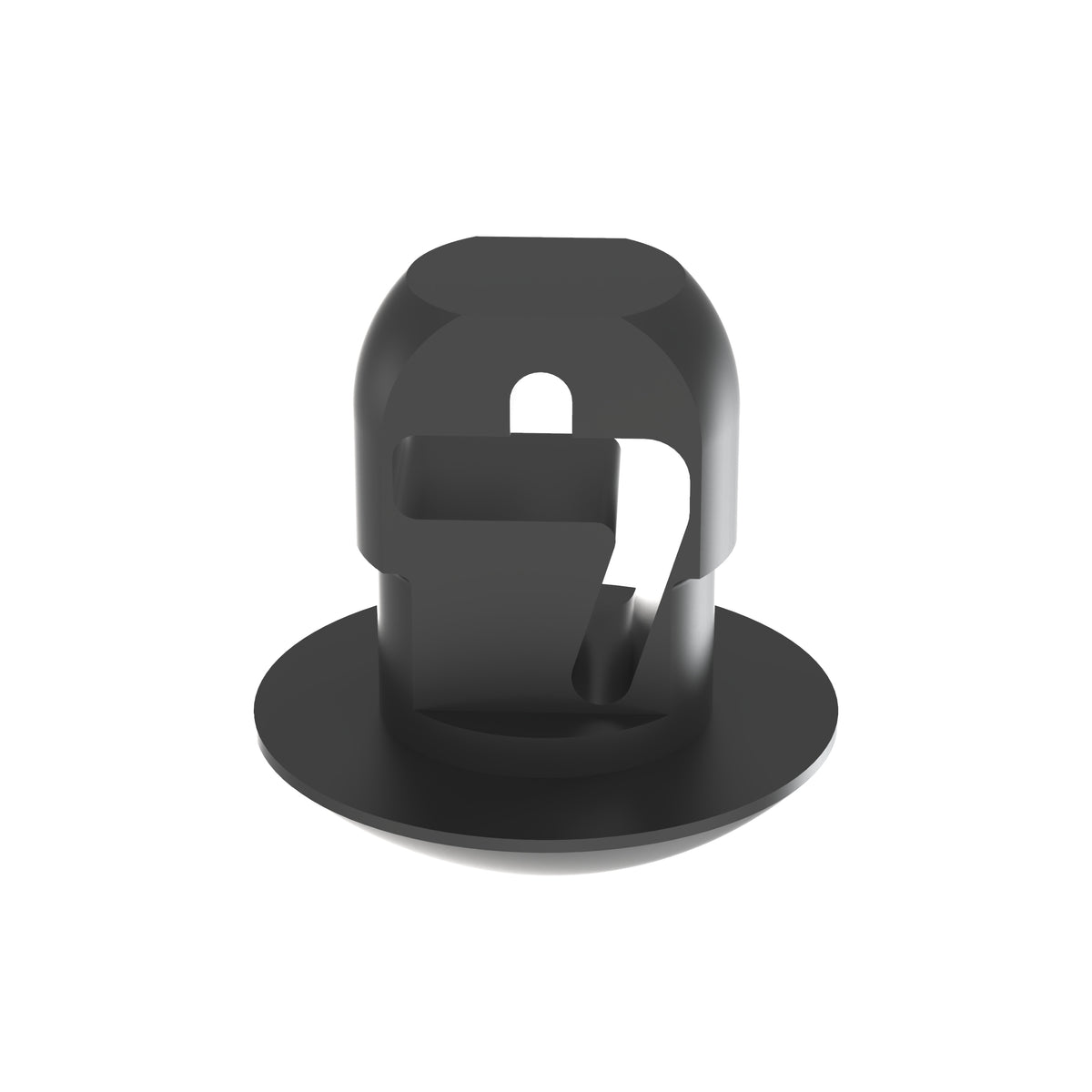

Panduit PBMS-H25-M30 | Push Button Cable Tie Mount
Description
Description
Panduit Cable Tie Mount, Push Barb Mounting, 0.33 in Base Length, 0.42 in Base Width, Nylon 6.6, Black
Our push-button cable tie mount offers a quick and easy way to secure cables in panels accessible from both sides. No adhesive or extra hardware needed for a clean installation.
Panduit PBMS-H25-M30 Push Button Cable Mounts can be used where both sides of the panel are accessible and require no adhesive or additional mounting hardware. They have a maximum panel thickness limit of 0.13 (3.2mm) and require a panel hole of 0.25 ( 6.4mm) for mounting. For use in indoor environments and with miniature, Intermediate and standard cable ties. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 1000.
Panduit - PBMS-H25-M30 - Features
- Applications: Push Button Mounts for Use where Both Sides of the Panel are Accessible
- Requires no adhesive or additional mounting hardware
- Designed for use only where both sides of the panel are accessible
- Heat stabilized nylon 6.6
Specifications
Specifications
Panduit - PBMS-H25-M30 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Material Description | Nylon 6.6 (Heat-Resistant) |
| Product Type | Cable Tie Mount |
| Application | Push Button Mounts for Use where Both Sides of the Panel are Accessible |
| Color | Black |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Maximum Compatible Panel Thickness (In.) | 0.13 |
| Maximum Compatible Panel Thickness (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Push Barb |
| Overall Length (In.) | 0.42 |
| Overall Length (mm) | 10.7 |
| Overall Width (In.) | 0.42 |
| Overall Width (mm) | 10.7 |
| Overall Height (In.) | 0.4 |
| Overall Height (mm) | 10.2 |
| Resistance Properties | Heat-Resistant |
| UPC | 07498358370 |
Panduit - PBMS-H25-M30 - Package Information
| UPC | 07498358370 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.0535 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.2675 |
Panduit - PBMS-H25-M30 - Videos
| Panduit PBMS-H25-M30 Videos | Click to View |
|---|
