Panduit PCA11-9 | StrongHold Clip-On Wire Marker
Regular price
$45.69
Unit price
Brand: Panduit
|
SKU:
265764
Regular price
$45.69
Unit price
Description
Description

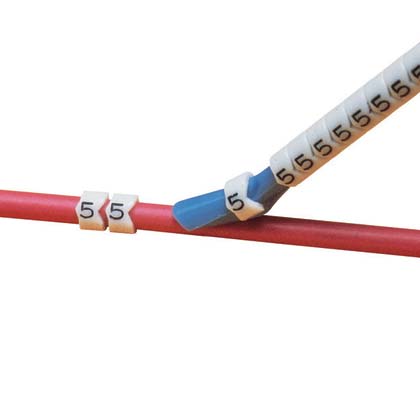

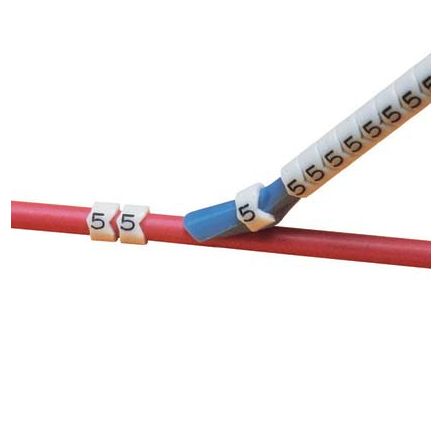

Panduit PCA11-9 | StrongHold Clip-On Wire Marker
Improve electrical safety and efficiency with our reliable clip-on wire marker, designed for clear identification.
Panduit Wire Marker, Clip-On Pre-Printed, Series: PCA, 0.155 in Length, 0.12 in Width, 9 Legend, 0.11 to 0.13 in Wire, Black Legend, White Marker, Acetal, -22 to 194 deg F
Panduit - PCA11-9 - Features
- Non-adhesive markers grip tightly to wire/cable
- Chevron cut keeps multiple markers aligned
- Markers supplied on application wand tool
- Legend is embossed into wire marker clip
Specifications
Specifications
Panduit - PCA11-9 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PCA11-9 |
| Product Type | Wire Marker |
| Sub Brand | StrongHold |
| Background Color | White |
| Color | White/Black |
| Legend Color | Black |
| Legend | 9 |
| Material | Acetal |
| Finish/Coating | Non-Adhesive |
| Maximum Cable Diameter (In.) | 0.13 |
| Maximum Cable Diameter (mm) | 3.3 |
| Minimum Cable Diameter (In.) | 0.11 |
| Minimum Cable Diameter (mm) | 2.8 |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Minimum Operating Temperature (°C) | -30 |
| Minimum Operating Temperature (°F) | -22 |
| Overall Width (In.) | 0.12 |
| Overall Width (mm) | 3 |
| Overall Height (In.) | 0.16 |
| Overall Height (mm) | 4 |
| Part Features | Non-adhesive markers grip tightly to wire/cable, Markers supplied on application wand tool, Chevron cut keeps multiple markers aligned, Black legend is embossed into wire marker clip |
| UPC | 07498393758 |
Panduit - PCA11-9 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PCA11-9 - Videos
| Panduit PCA11-9 Video 1 | Click to View |
|---|
