Brand: Panduit
|
SKU:
1018723

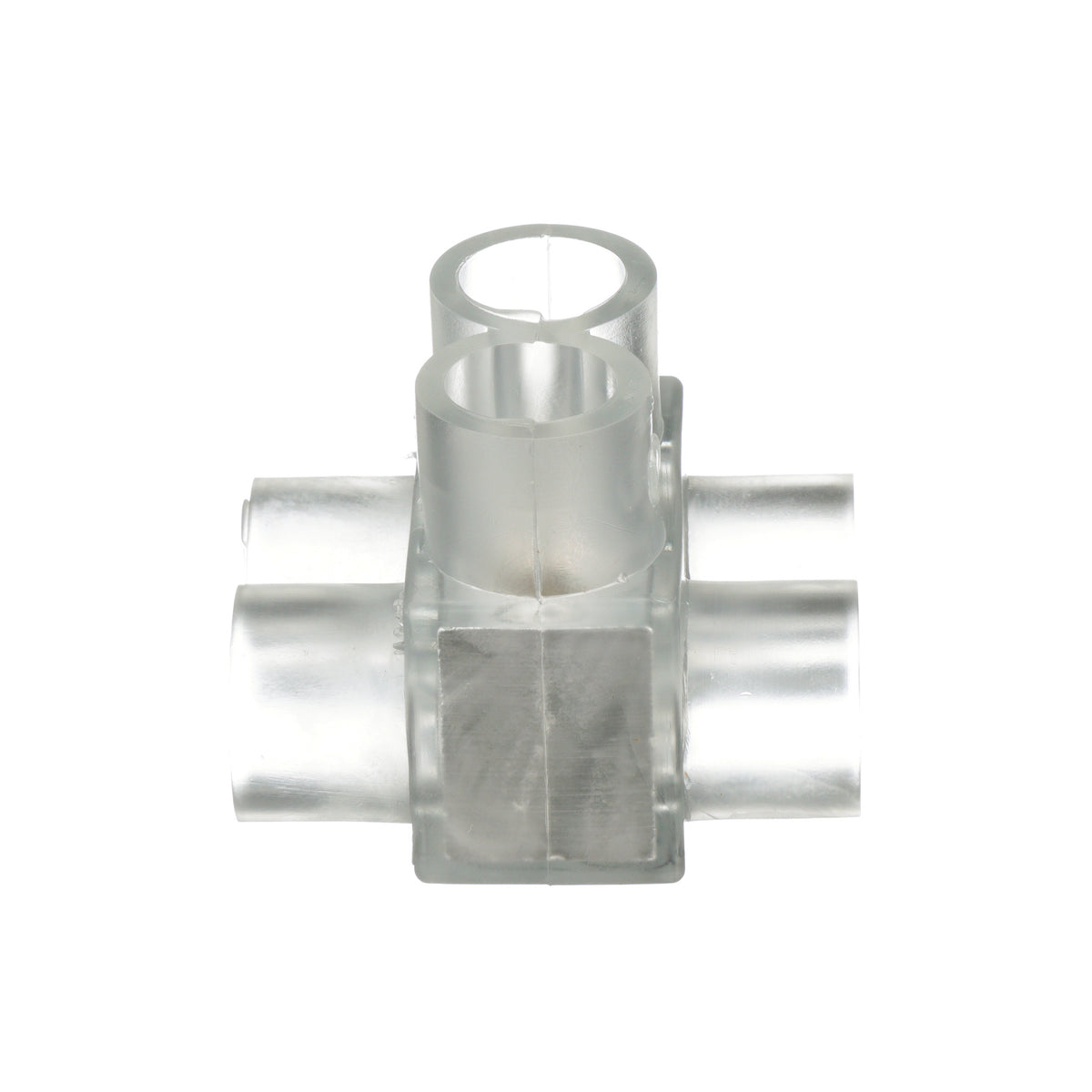

Panduit PCSB250-2-6Y | Multi-Tap Mechanical Connectors, Double Sided | UPC - 07498359659
Regular price
$207.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PCSB250-2-6Y | Multi-Tap Mechanical Connectors, Double Side...
Regular price
$207.24
Unit price
Description
Description
Panduit Pan-Lug Multi-Tap Connector, 2-Port Double Sided, Series: PCSB, Stranded Conductor, 10 AWG to 250 kcmil Stranded Aluminum/Copper Conductor, Screw, 600 VAC, 5/16 in Hex Key, 275 in-lb Tightening Torque, 90 deg C, Aluminum, 2.03 in L x 2.63 in W x 2.13 in H
Features + Benefits
- Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
- Flexible design can be used as a tap, splice or dead end connector
- Body made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
- Wide wire range taking capability minimizes inventory requirements
- Dual sided entry allows offset and opposite entry for primary and secondary conductors
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
Panduit PCSB250-2-6Y Key Specs
| Application | Aluminum or Copper Code Conductors |
| Note | PCSB250-2-6Y replaces PCSB250-2-6 |
| Product Type | Multi-Tap Mechanical Connectors, Double Sided |
| Base Material | Aluminum |
| Minimum Aluminum Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG STR) | 10 |
| Maximum Aluminum Conductor Size (kcmil) | 250 |
| Maximum Copper Conductor Size (kcmil) | 250 |
| Number of Ports | 2 |
| Overall Height (In.) | 2.13 |
| Overall Height (mm) | 54.1 |
| Overall Length (In.) | 2.03 |
| Overall Length (mm) | 51.5 |
| Overall Width (In.) | 2.63 |
| Overall Width (mm) | 66.8 |
| Insulation Material | Clear PVC |
| Finish/Coating | Tin-Plated |
| Standards Met | UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Hex Size (In.) | 5/16 |
| Hex Size (mm) | 7.9 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 0.88 |
| Wire Strip Length (mm) | 22.3 |
| Part Features | Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation. |
Panduit PCSB250-2-6Y Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PCSB4-2-12Y Product Page | Download and View |
| Part Drawings | Multi-Tap Insulated Connectors PCSB250 Series | Download and View |
| MSDS | Safety Data Sheet T-MSDS-005-PC | Download and View |
| Installation Documents | In-Line Splicer/Reducer Aluminum Mechanical Connectors Installation Instructions | Download and View |
| Videos | Getting Power to the Data Center Video | Download and View |
