Brand: Panduit
|
SKU:
PAN-PCSB350-2S-4

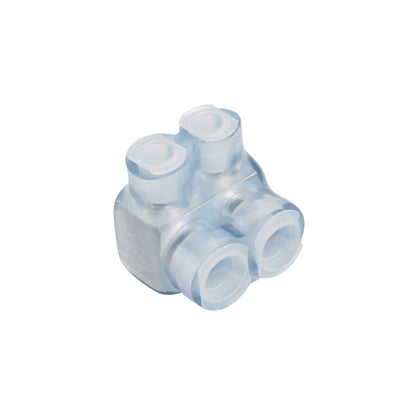

Panduit PCSB350-2S-4Y | Multi-Tap Mechanical Connectors, Single Sided | UPC - 07498359681
Regular price
$43.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PCSB350-2S-4Y | Multi-Tap Mechanical Connectors, Single Sid...
Regular price
$43.09
Unit price
Brand: Panduit
|
SKU:
PAN-PCSB350-2S-4
Regular price
$43.09
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Multi-Tap Connector, 2-Port Single Sided, Series: PCSB, Stranded Conductor, 10 AWG to 350 kcmil Stranded Aluminum/Copper Conductor, Screw, 600 VAC, 5/16 in Hex Key, 275 in-lb Tightening Torque, 90 deg C, Aluminum, 2.17 in L x 2.25 in W x 2.5 in H
Features + Benefits
- Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
- Flexible design can be used as a tap, splice or dead end connector
- Body made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
- Wide wire range taking capability minimizes inventory requirements
- Dual sided entry allows offset and opposite entry for primary and secondary conductors
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
Panduit PCSB350-2S-4Y | Multi-Tap Mechanical Connectors, Single Sided | UPC - 07498359681 Key Specs
| Application | Aluminum or Copper Code Conductors |
| Note | PCSB350-2S-4Y replaces PCSB350-2S-4 |
| Product Type | Multi-Tap Mechanical Connectors, Single Sided |
| Number of Ports | 2 |
| Overall Height (In.) | 2.5 |
| Overall Height (mm) | 63.5 |
| Overall Length (In.) | 2.17 |
| Overall Length (mm) | 58.7 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Insulation Material | Clear PVC |
| Sub Brand | Pan-Lug |
| Part Features | Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation. |
Panduit PCSB350-2S-4Y | Multi-Tap Mechanical Connectors, Single Sided | UPC - 07498359681 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PCSB4-2S-12Y Product Page | Download and View |
| Part Drawings | Multi-Tap Insulated Connectors PCSB350 Series Single Sided | Download and View |
| MSDS | Safety Data Sheet T-MSDS-005-PC | Download and View |
Panduit PCSB350-2S-4Y | Multi-Tap Mechanical Connectors, Single Sided | UPC - 07498359681 Environmental Information
| Panduit's RoHS Statement | Download and View |
