Brand: Panduit
|
SKU:
9791529

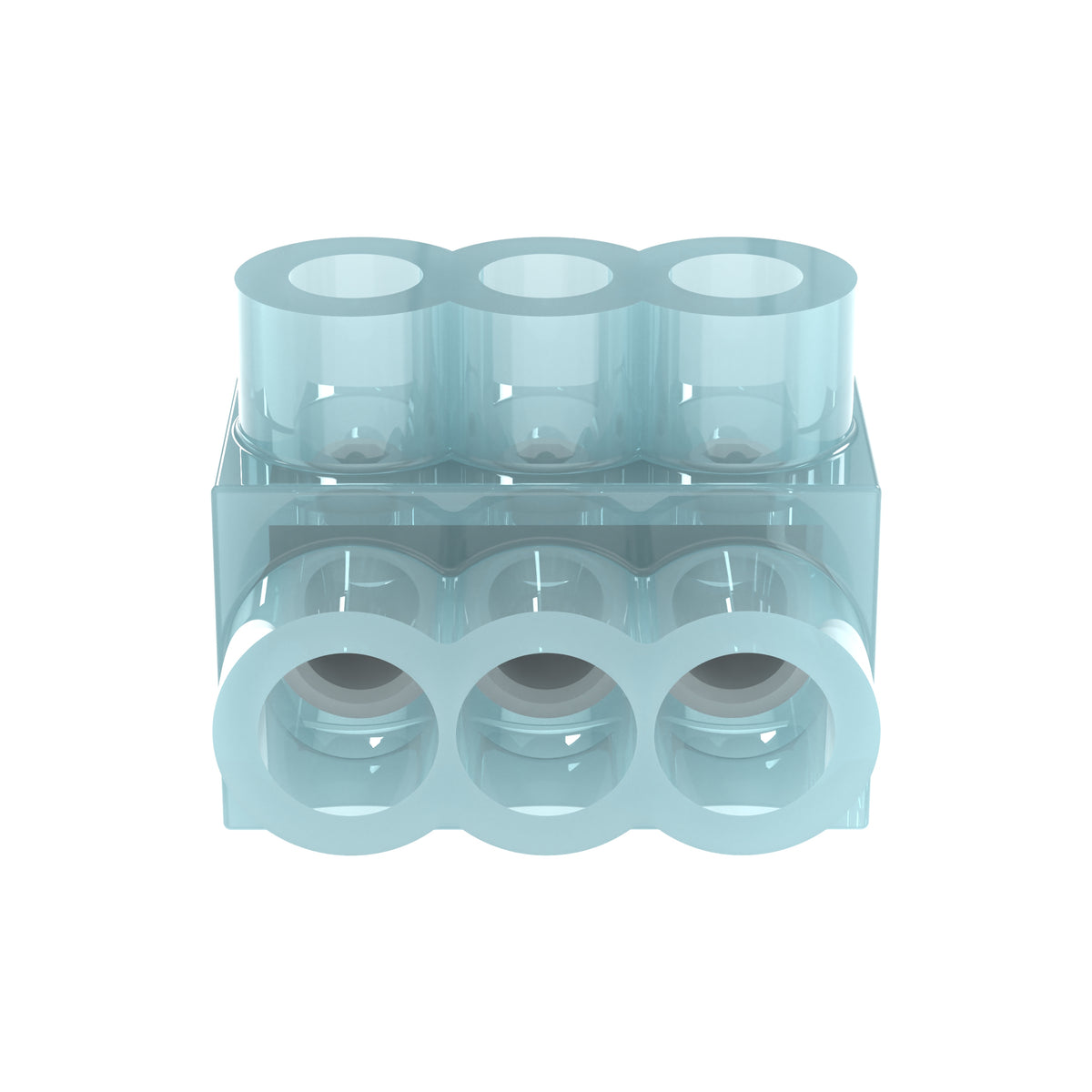

Panduit PCSB4-3S-12Y | Multi-Tap Mechanical Connectors, Single Sided | UPC - 07498359757
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PCSB4-3S-12Y | Multi-Tap Mechanical Connectors, Single Side...
Regular price
$23.72
Unit price
Description
Description
Panduit Pan-Lug Multi-Tap Connector, 3-Port Single Sided, Series: PCSB, Solid/Stranded Conductor, 14 to 4 AWG Stranded, 14 to 10 AWG Solid Aluminum/Copper Conductor, Screw, 600 VAC, 1/8 in Hex Key, 50 in-lb Tightening Torque, 90 deg C, Aluminum, 1.76 in L x 1.25 in W x 1.25 in H
Features + Benefits
- Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
- Flexible design can be used as a tap, splice or dead end connector
- Body made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
- Wide wire range taking capability minimizes inventory requirements
- Dual sided entry allows offset and opposite entry for primary and secondary conductors
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
Panduit PCSB4-3S-12Y Key Specs
| Application | Aluminum or Copper Code Conductors |
| Note | PCSB4-3S-12Y replaces PCSB4-3S-12 |
| Product Type | Multi-Tap Mechanical Connectors, Single Sided |
| Base Material | Aluminum |
| Minimum Aluminum Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 14 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Maximum Copper Conductor Size (AWG STR) | 4 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Number of Ports | 3 |
| Overall Height (In.) | 1.25 |
| Overall Height (mm) | 31.7 |
| Overall Length (In.) | 1.76 |
| Overall Length (mm) | 44.7 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Insulation Material | Clear PVC |
| Finish/Coating | Tin-Plated |
| Standards Met | UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Hex Size (In.) | 1/8 |
| Hex Size (mm) | 3.17 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 0.56 |
| Wire Strip Length (mm) | 14.2 |
| Part Features | Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation. |
Panduit PCSB4-3S-12Y Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PCSB4-2S-12Y Product Page | Download and View |
| MSDS | Safety Data Sheet T-MSDS-005-PC | Download and View |
| Part Drawings | Multi-Tap Insulated Connectors PCSB4 Series Customer Drawing | Download and View |
| Installation Documents | In-Line Splicer/Reducer Aluminum Mechanical Connectors Installation Instructions | Download and View |
| Videos | Getting Power to the Data Center Video | Download and View |
