Brand: Panduit
|
SKU:
10083258

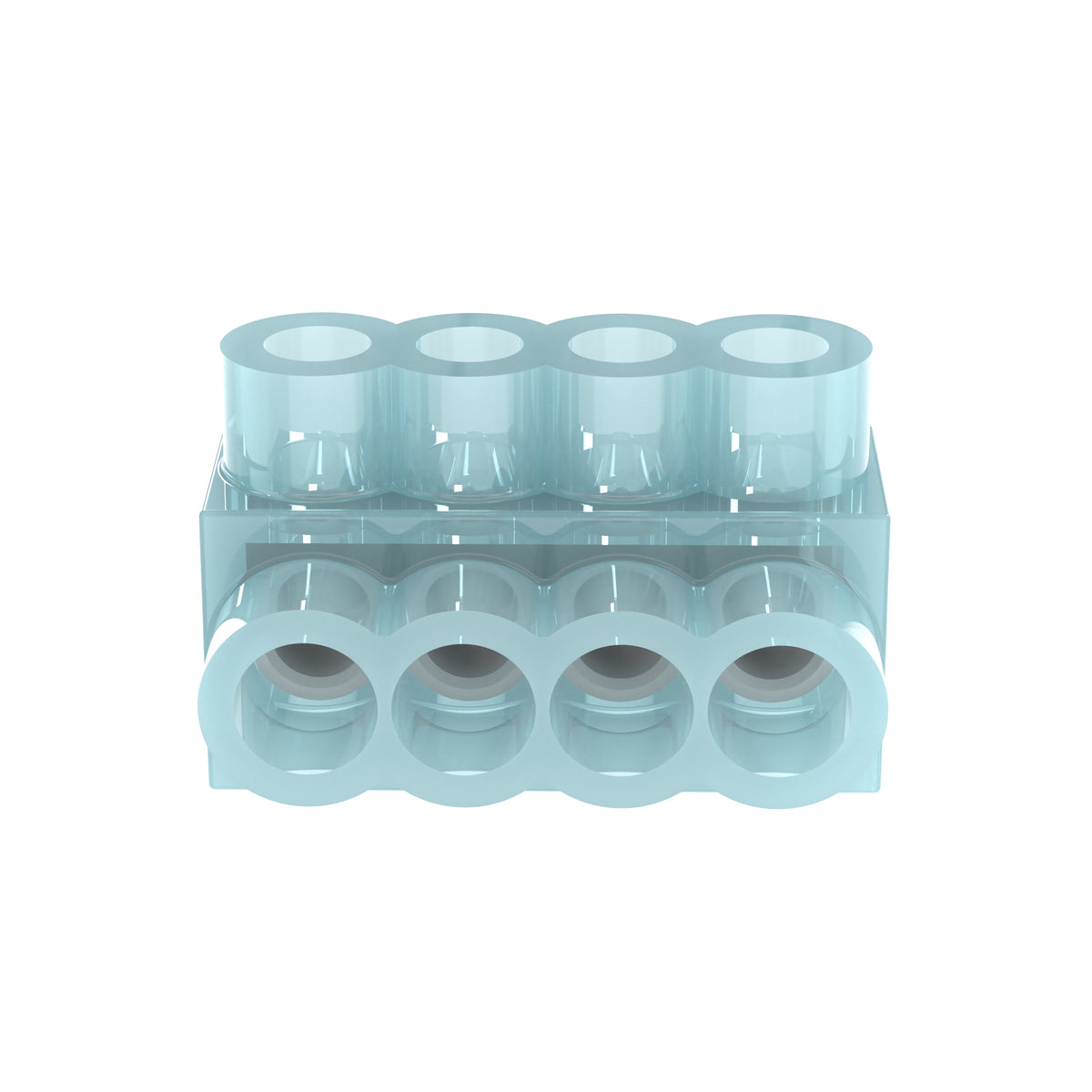

Panduit PCSB4-4-6Y | Multi-Tap Mechanical Connectors, Double Sided | UPC - 07498359778
Regular price
$37.86
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PCSB4-4-6Y | Multi-Tap Mechanical Connectors, Double Sided ...
Regular price
$37.86
Unit price
Brand: Panduit
|
SKU:
10083258
Regular price
$37.86
Unit price
Description
Description
Panduit Pan-Lug Multi-Tap Connector, 4-Port Double Sided, Series: PCSB, Solid/Stranded Conductor, 14 to 4 AWG Stranded, 14 to 10 AWG Solid Aluminum/Copper Conductor, Screw, 600 VAC, 1/8 in Hex Key, 50 in-lb Tightening Torque, 90 deg C, Aluminum, 2.29 in L x 1.5 in W x 1.25 in H
Features + Benefits
- Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
- Flexible design can be used as a tap, splice or dead end connector
- Body made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
- Wide wire range taking capability minimizes inventory requirements
- Dual sided entry allows offset and opposite entry for primary and secondary conductors
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
Panduit Panduit PCSB4-4-6Y | Multi-Tap Mechanical Connectors, Double Sided | UPC - 07498359778 Key Specs
| Application | Aluminum or Copper Code Conductors |
| Note | PCSB4-4-6Y replaces PCSB4-4-6 |
| Product Type | Multi-Tap Mechanical Connectors, Double Sided |
| Base Material | Aluminum |
| Minimum Aluminum Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 14 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Maximum Aluminum Conductor Size (AWG) | 4 |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Maximum Copper Conductor Size (AWG STR) | 4 |
| Number of Ports | 4 |
| Overall Height (In.) | 1.25 |
| Overall Height (mm) | 31.7 |
| Overall Length (In.) | 2.29 |
| Overall Length (mm) | 58.1 |
| Overall Width (In.) | 1.5 |
| Overall Width (mm) | 38.1 |
| Insulation Material | Clear PVC |
| Finish/Coating | Tin-Plated |
| Standards Met | UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C |
Panduit Panduit PCSB4-4-6Y | Multi-Tap Mechanical Connectors, Double Sided | UPC - 07498359778 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PCSB4-2-12Y Product Page | Download and View |
| MSDS | Safety Data Sheet T-MSDS-005-PC | Download and View |
| Part Drawings | Multi-Tap Insulated Connectors PCSB4 Series Customer Drawing | Download and View |
Panduit Panduit PCSB4-4-6Y | Multi-Tap Mechanical Connectors, Double Sided | UPC - 07498359778 Environmental Information
| Panduit's RoHS Statement | Download and View |
