Panduit PE2VFD12 | Single Sided Manager | UPC - 61305666654
Description
Description

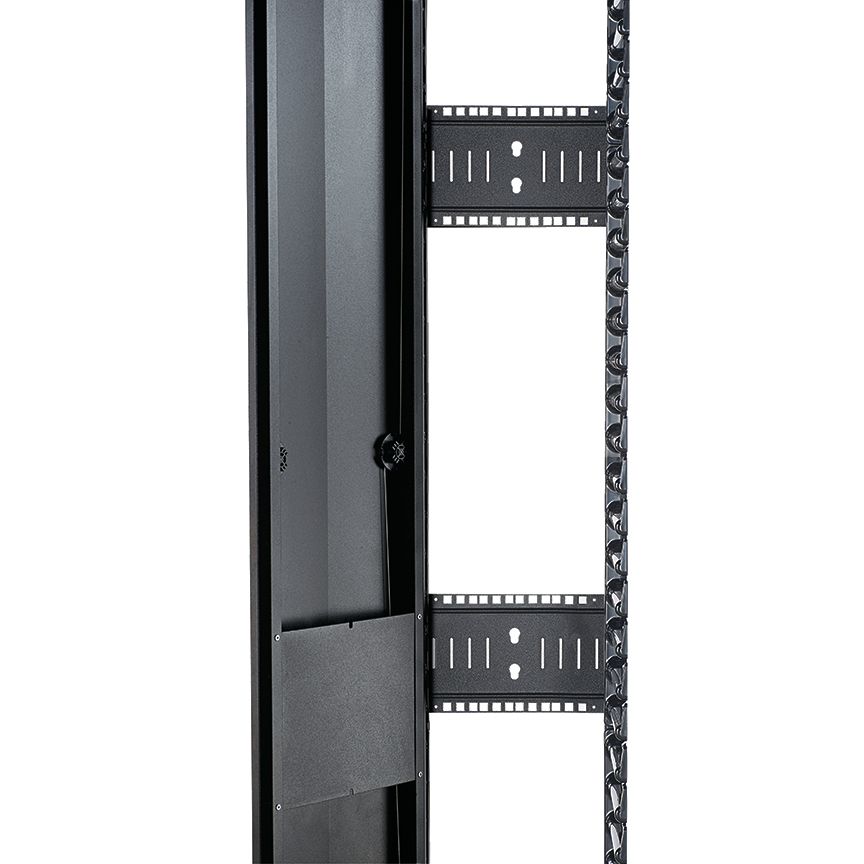

The Panduit PatchRunner 2 Enhanced vertical cable manager pairs ultra-high-density capability and versatility with its unique zero RU patching feature. The partially assembled manager helps speed up deployment with an easy installation. Single sided, steel, 45 RU, black, 1 pc, includes (1) full length metal, dual-hinging, push-to-close door.
Panduit PatchRunner 2 Enhanced Cable Manager, Single Sided Vertical, Series: PE2V, 12 in Width, 16.3 in D, 83.6 in Height, 45RU Capacity, For Use With: 19 or 23 in EIA Standard Rack, Steel, Black Oxide
Features + Benefits
- Integral EIA 19 in zero RU mounting
- Allows mounting of many standard EIA 19 in accessories such as patch panels, strain relief bars and blanking panels within the vertical channel of the manager
- 26.8 in extra deep manager - 26.8 in D at a 60/40 split provides the highest capacity for latest high performance switches and category 6A cabling
- Improved door function - push-to-close door design allows for easy operation
- Highest density with increased cable capacity - up to 45% more usable capacity over PR2V manager
- Bend radius control - fingers support cables as they transition to vertical pathway while maintaining cable bend radius control, ensuring network performance and system reliability
Panduit PE2VFD12 Key Specs
| Product Type | Single Sided Manager |
| Body Material | Steel |
| Cover Material | Steel |
| Finger Material | ABS |
| Sub Brand | PatchRunner 2 Enhanced |
| Overall Height (In.) | 83.6 |
| Overall Height (mm) | 2131.1 |
| Overall Width (In.) | 12 |
| Overall Width (mm) | 304.8 |
| Overall Depth (In.) | 16.3 |
| Overall Depth (mm) | 414.8 |
| Number of Rack Units | 45 |
| Color | Black |
| Standards Met | RoHS |
| Includes | Manager, one door, hardware kit |
Panduit PE2VFD12 Data Sheets
| Flyers | PatchRunner Family: PR2V & PE2V | Download and View |
| Application Guides | PatchRunner 2 Enhanced Vertical Cable Manager with Vertical Patching | Download and View |
| Press Releases | PatchRunner 2 Enhanced Vertical Cable Manager with Vertical Patching | Download and View |
| Specification Sheets | PatchRunner 2 Enhanced Vertical Cable Manager with Vertical Patching | Download and View |
| Installation Documents | PatchRunnerTM 2 Enhanced Vertical Cable Managers Installation Instructions , V00029RB | Download and View |
