Panduit PESS-A-CE | Polyester Conductor Identification Label
Regular price
$49.60
Unit price
Brand: Panduit
|
SKU:
10048376
Regular price
$49.60
Unit price
Description
Description

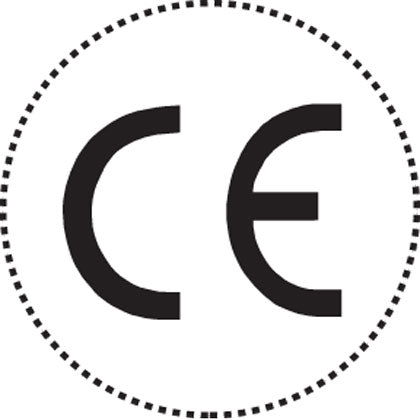

Panduit PESS-A-CE | Polyester Conductor Identification Label
Panduit Conductor Identification Label, Style A, 6-3/4 in Length, 1-1/2 in Width, Legend: CE Symbol, Black/White Legend/Background, Polyester
Quickly and easily identify wires and components with our durable polyester conductor identification label. It's perfect for professional electrical and industrial applications.
Conductor identification label, 0.49" (12.50mm) marker diameter, CE symbol, polyester adhesive, black/white, 20 labels/card, 10 cards/package. Dotted line represents cut line and will not show on label.
Panduit - PESS-A-CE - Features
- Laminated label material protects legend from abrasion and chemicals, resistant to UV light, chemical atmosphere and abrasion
- Dotted line represents cut line and will not show on label
Specifications
Specifications
Panduit - PESS-A-CE - Specifications
| Type | Labels |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | RoHS Compliant |
| Label Dimensions (In.) | 6.75W x 1.5H |
| Product Type | Conductor Label |
| Legend | CE Symbol |
| Legend Color | Black |
| Background Color | White |
| Environment | Indoor/Outdoor |
| Material | Polyester |
| Maximum Operating Temperature (°C) | 121 |
| Maximum Operating Temperature (°F) | 250 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Standards Met | RoHS Compliant |
| Number of Labels | 20 |
| Overall Width (In.) | 6.75 |
| Overall Width (mm) | 171.4 |
| Overall Height (In.) | 1.5 |
| Overall Height (mm) | 38.1 |
| Diameter (In.) | 0.49 |
| Diameter (mm) | 12.4 |
| Legend Meaning | CE Symbol |
| UPC | 07498357456 |
Panduit - PESS-A-CE - Package Information
| UPC | 07498357456 |
|---|---|
| Standard Packaging Quantity | 10 |
| Standard Packaging Volume (cf) | 0.0068 |
| Standard Ctn. Quantity | 100 |
| Standard Ctn. Volume (cf) | 0.0676 |
