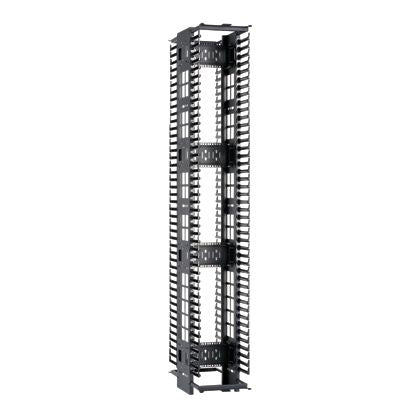

Panduit PEV896 | Dual Sided Manager | UPC - 07498348981
Description
Description
The vertical cable manager shall consist of a metal backbone with cable management fingers that align with EIA rack spacing. The backbone shall be an open design that will accept 19 in EIA accessories such as strain relief bars, patch panels, blanking panels and POU mounted vertically in a zero RU format. The fingers shall be molded out of plastic and provide integral bend radius control throughout the entire length. Fingers sections shall be removable. Individual fingers can be broken out. The manager shall accept a metal, hinged door that can open to the right or left. The vertical panel shall be able to manage all the cable on the rack without the aid of horizontal cable managers.
Panduit PatchRunner Cable Manager, 52RU Dual Sided High Capacity Vertical, 8 in Width, 23.3 in Depth, 95-1/2 in Height, 52RU Capacity, For Use With: 19 in or 23 in EIA Standard Rack, Steel, Black
Features + Benefits
- 23 in D provides capacity for latest high performance switches and Cat 6A cabling
- Allows mounting of many standard EIA 19 in accessories, such as patch panels, vertically in the manager
- Large pass-through openings provide increased airflow for side flow switches
- Push shut door with visual and audible feedback
- Orientate higher capacity side where it is needed on the rack, front or back
- Can be placed onto fingers to help retain cables in channel during system installation and maintenance
- On the end of each finger to facilitate moves, adds and changes
- Allows quick location of zero RU vertical mounting spaces
- Not only do wide and deep features provide for Cat 6A cables, but integral EIA zero RU mounting capabilities also allow equipment to be patched to the manager, freeing up valuable RU space
Panduit PEV896 Key Specs
| Product Type | Dual Sided Manager |
| Body Material | Steel |
| Sub Brand | PatchRunner High Capacity |
| Overall Height (In.) | 95.5 |
| Overall Height (mm) | 2426 |
| Overall Width (In.) | 8 |
| Overall Width (mm) | 203 |
| Overall Depth (In.) | 23.3 |
| Overall Depth (mm) | 592 |
| Color | Black |
| Standards Met | RoHS |
| Number of Rack Units | 52 |
Panduit PEV896 Data Sheets
| Specification Sheets | PatchRunner High Capacity Vertical Cable Managers | Download and View |
| Videos | PatchRunner High Capacity Vertical Cable Management System | Download and View |
| Part Drawings | PatchRunner High Capacity Vertical Manager 8ft Tall 8" Wide, Dual-Sided | Download and View |
| Installation Documents | PatchRunner High Capacity Vertical Cable Manager | Download and View |
