Panduit PFR6X04BU-CG | Copper Cable | UPC - 07498363977
Description
Description

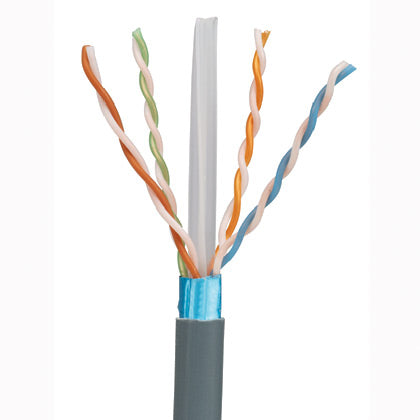

TX6A 10Gig Shielded Copper Cable is a component of the Panduit TX6A 10Gig Shielded Copper Cabling System. This end-to-end system provides a cost-effective medium for ensuring that network bandwidth needs are easily met today and tomorrow. The shielded cabling system provides high performance, excellent EMI suppression, and aids in secure data transmission. The Panduit solution helps ensure organizations efficiently and reliably meet their data transmission needs. Usage of the TX6A 10Gig shielded copper cabling system include high bandwidth applications within data centers and connections to high-end workstations such as 10GBASE-T ethernet, data center applications, virtual business management applications.
Panduit TX6A 10Gig Shielded Copper Cable, Cat6a F/UTP, 4 Pairs Conductors, Bare Solid Copper Conductor, 23 AWG Conductor, 0.284 in OD, 1000 ft Length, PE Insulation, PVC Jacket, Blue Jacket, -4 to 167 deg F
Features + Benefits
- Integrated pair divider, overall foil shield, Internal drain wire
- Descending length cable markings and bulk packaging
- Separated by an integrated pair separator, all four pairs surrounded by an overall metallic foil shield and protected by a riser jack
Panduit PFR6X04BU-CG | Copper Cable | UPC - 07498363977 Key Specs
| Note | Available in North and Latin America |
| Environment | Indoor |
| Performance Level | Category 6A |
| Cable Construction | F/UTP |
| Flammability Rating | Riser (CMR) |
| LP Rating | LP (0.5A) |
| Resistance Properties | Flame-Resistant |
| Jacket Material | CMR |
| Nominal Cable Outside Diameter (In.) | 0.28 |
| Nominal Cable Outside Diameter (mm) | 7.2 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 75 |
| Maximum Installation Temperature (°F) | 167 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Sub Brand | PanNet |
Panduit PFR6X04BU-CG | Copper Cable | UPC - 07498363977 Data Sheets
| Certifications | Category 6A ETL Channel Certificate for PFR6X04-CG | Download and View |
| Selection Guides | TX6A 10Gig Shielded Copper Cabling System Selection Guide: COSG06--WW-ENG | Download and View |
| Technical References | Extended Reach over Copper Cable: TR124 | Download and View |
Panduit PFR6X04BU-CG | Copper Cable | UPC - 07498363977 Environmental Information
| Panduit's RoHS Statement | Download and View |
