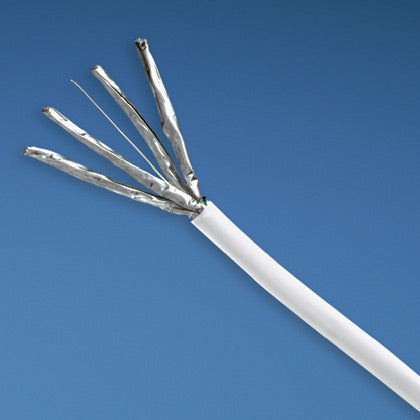

Panduit PFR6X04WH-CG | Copper Cable | UPC - 07498363959
Description
Description
Cat 6A cable shall be constructed of 23 AWG copper conductors with PE CM, CMR or LSZH insulation. The copper conductors shall be twisted in pairs and separated by an integrated pair separator. All four pairs shall be surrounded by an overall metallic foil shield within a low smoke zero halogen jacket. The TX6A 10Gig Shielded Copper Cable must be installed as part of a complete TX6A 10Gig Shielded Copper Cabling System to achieve 10GBASE-T certified performance.
Panduit PanNet TX6A 10Gig Shielded Copper Cable, Type CMR Cat 6a Flame Retardant, Reel Packaging, 80 VAC, 8 Conductors, F/UTP Shielded Bare Solid Copper Conductor, 23 AWG Conductor, 0.284 in OD, 1000 ft Length, <7.32 Ohm Resistance, Polyethylene Insulation, PVC Jacket, White Jacket, -4 to 167 deg F
Features + Benefits
- Descending length cable marking
Panduit PFR6X04WH-CG | Copper Cable | UPC - 07498363959 Key Specs
| Performance Level | Category 6A |
| Cable Construction | F/UTP |
| Flammability Rating | Riser (CMR) |
| LP Rating | LP (0.5A) |
| Resistance Properties | Flame-Resistant |
| Jacket Material | CMR |
| Nominal Cable Outside Diameter (In.) | 0.28 |
| Nominal Cable Outside Diameter (mm) | 7.2 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 75 |
| Maximum Installation Temperature (°F) | 167 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Sub Brand | PanNet |
| Maximum Installation Tension (lb) | 25 |
Panduit PFR6X04WH-CG | Copper Cable | UPC - 07498363959 Data Sheets
| Certifications | Category 6A ETL Channel Certificate for PFR6X04-CG | Download and View |
| Selection Guides | TX6A 10Gig Shielded Copper Cabling System Selection Guide: COSG06--WW-ENG | Download and View |
| Technical References | Extended Reach over Copper Cable: TR124 | Download and View |
Panduit PFR6X04WH-CG | Copper Cable | UPC - 07498363959 Environmental Information
| Panduit's RoHS Statement | Download and View |
