Panduit PH14-10R-Q | Ring Terminal | UPC - 07498381806
Regular price
$46.99
Unit price
Brand: Panduit
|
SKU:
PAN-PH14-10R-Q
Regular price
$46.99
Unit price
Shipping calculated at checkout.
Description
Description

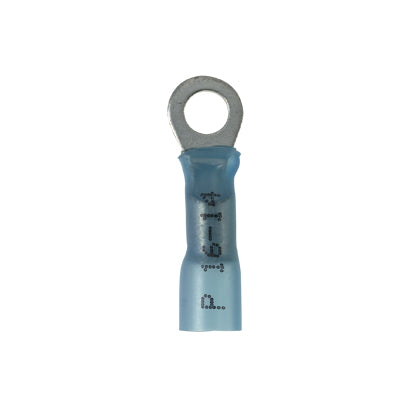

Panduit Pan-Term Ring Terminal, Insulated, Series: PH-R, 16 to 14 AWG Conductor, #10 Stud, 1.05 in Length, Brazed Seam Barrel, 1/4 in L Barrel, Ring Tongue, 0.32 in W Tongue, 600 VAC, 5/16 in L Wire Strip, 1.05 in Clearance, Standard Barrel Configuration, -65 to 230 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Heat shrinkable polyolefin insulated with hot melt sealant
- Standard barrel configuration
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Heat shrink installation is completed with a standard heat gun
- 300 deg F shrink temperature
Panduit PH14-10R-Q | Ring Terminal | UPC - 07498381806 Key Specs
| Stud Size | #10 |
| Insulation Material | Heat Shrink |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.38 |
| Wire Strip Length (mm) | 9.5 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Flammability Rating | UL 94 V-2/UL 94 HB |
| Insulation Diameter (In.) | 0.19 |
| Insulation Diameter (mm) | 4.8 |
Panduit PH14-10R-Q | Ring Terminal | UPC - 07498381806 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | RING TERMINALS, HEAT SHRINK INSULATED | Download and View |
Panduit PH14-10R-Q | Ring Terminal | UPC - 07498381806 Environmental Information
| Panduit's RoHS Statement | Download and View |
