Brand: Panduit
|
SKU:
10044664
Panduit PK10-14R-L | Ring Terminal | UPC - 07498382877
Regular price
$104.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PK10-14R-L | Ring Terminal | UPC - 07498382877
Regular price
$104.43
Unit price
Description
Description

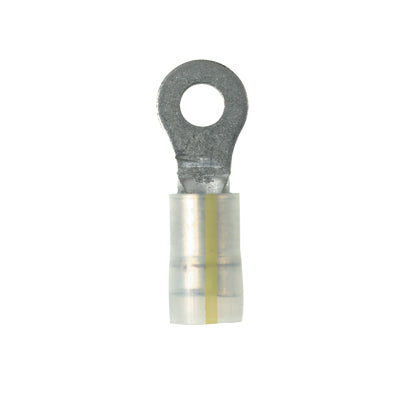

Panduit Pan-Term Terminal, Type PK-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 1/4 in Stud, 1-1/4 in Length, Serrated/Standard Barrel, Ring Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.42 in Clearance, 300 deg F, Copper, Tin Plated, Yellow
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Expanded insulation for large wire OD
Panduit Panduit PK10-14R-L | Ring Terminal | UPC - 07498382877 Key Specs
| Stud Hole Size (In.) | 27/100 |
| Stud Hole Size (mm) | 6.9 |
| Stud Size | 1/4" |
| Insulation Material | Kynar |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | IEEE 323-2003 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
Panduit Panduit PK10-14R-L | Ring Terminal | UPC - 07498382877 Environmental Information
| Panduit's RoHS Statement | Download and View |
