Brand: Panduit
|
SKU:
10044670

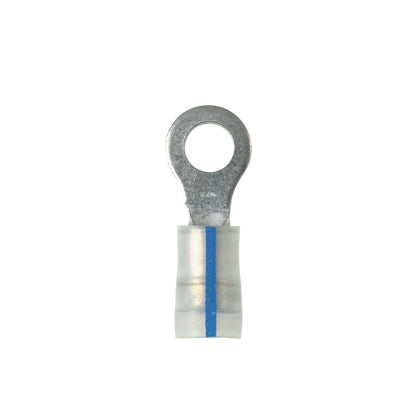

Panduit PK14-14R-C | Ring Terminal | UPC - 07498382865
Regular price
$169.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PK14-14R-C | Ring Terminal | UPC - 07498382865
Regular price
$169.10
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PK-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, 1/4 in Stud, 1.08 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.4 in Clearance, 300 deg F, Copper, Tin Plated, Blue
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PK14-14R-C | Ring Terminal | UPC - 07498382865 Key Specs
| Stud Hole Size (In.) | 27/100 |
| Stud Hole Size (mm) | 6.9 |
| Stud Size | 1/4" |
| Insulation Material | Kynar |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
Panduit Panduit PK14-14R-C | Ring Terminal | UPC - 07498382865 Environmental Information
| Panduit's RoHS Statement | Download and View |
