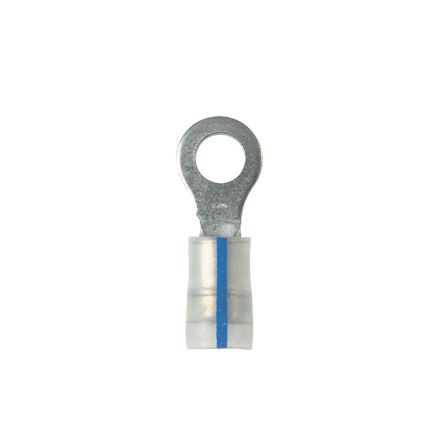

Panduit PK14-6R-C | Pan-Term PK14-6R-C Ring Terminal, Blue, Kynar, 14-18 AWG, PK100
The PK14-6R-C Pan-Term Terminal is a KYNAR insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.
Panduit PK14-6R-C Ring Terminal 18-14awgkynar Insulated #6 Stud Blue100/pk
Specifications
Specifications
Panduit - PK14-6R-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PK14-6R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PK14-6R-C |
| Item Description | Pan-Term PK14-6R-C Ring Terminal, Blue, Kynar, 14-18 AWG, PK100 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Kynar |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Maximum Wire Insulation Diameter (In.) | 0.162 |
| Maximum Wire Insulation Diameter (mm) | 4.11 |
| Seam Type | Butted with Sleeve |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.87 |
| Overall Length (mm) | 22.1 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.87 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.76 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.87 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • For nuclear containment areas and high temperature to 300°F (150°C) applications • Color code: natural with appropriate color stripe to identify wire range • Ring tongue design assures a secure connection in high vibration applications |
Panduit - PK14-6R-C - Package Information
| UPC | 07498382859 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0074 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0368 |
