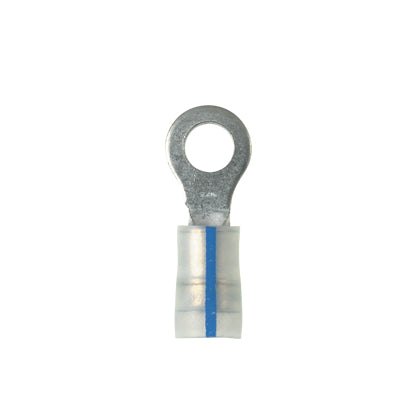

Panduit PK14-8R-C | Ring Terminal | UPC - 07498382861
Regular price
$147.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PK14-8R-C | Ring Terminal | UPC - 07498382861
Regular price
$147.49
Unit price
Brand: Panduit
|
SKU:
PAN-PK14-8R-C
Regular price
$147.49
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Terminal, Type PK-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, #8 Stud, 0.87 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 7/32 in L Wire Strip, 0.29 in Clearance, KYNAR Insulated, 300 deg F, Copper, TiN Coated, Blue
Features + Benefits
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PK14-8R-C | Ring Terminal | UPC - 07498382861 Key Specs
| Stud Hole Size (In.) | 1/6 |
| Stud Hole Size (mm) | 4.3 |
| Stud Size | #8 |
| Insulation Material | Kynar |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
Panduit PK14-8R-C | Ring Terminal | UPC - 07498382861 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PK18-4R-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4129806 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
