Brand: Panduit
|
SKU:
10044528
Panduit PK4-12R-T | Loose Piece Ring Terminal | UPC - 07498319814
Regular price
$740.71
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PK4-12R-T | Loose Piece Ring Terminal | UPC - 07498319814
Regular price
$740.71
Unit price
Description
Description

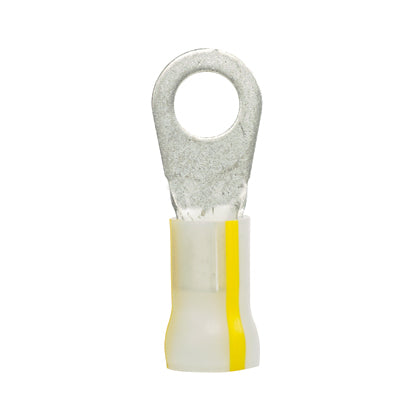

Ring terminal, #4 AWG, KYNAR insulated, 1/2" stud size.
Panduit Panduit PK4-12R-T | Loose Piece Ring Terminal | UPC - 07498319814 Key Specs
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Size | 1/2" |
| Insulation Material | Kynar |
| Maximum Copper Conductor Size (AWG) | 4 |
| Maximum Wire Size (AWG) | #4 |
| Wire Strip Length (In.) | 0.50 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | UL 486A - UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Flammability Rating | UL 94 V-0 |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.7 |
Panduit Panduit PK4-12R-T | Loose Piece Ring Terminal | UPC - 07498319814 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PK18-4R-C Product Page | Download and View |
| Part Drawings | Ring Terminal, Large Wire, KYNAR Insulated, PK4-R | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PK4-12R-T | Loose Piece Ring Terminal | UPC - 07498319814 Environmental Information
| Panduit's RoHS Statement | Download and View |
