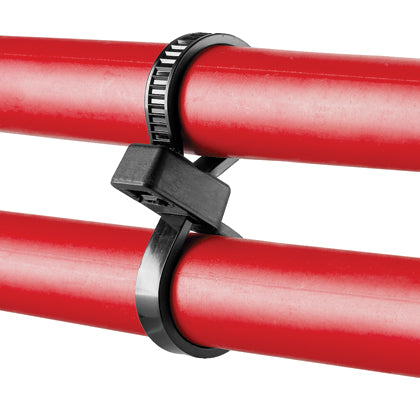

Panduit PLB2S-C0 | Pan-Ty® Double Loop Cable Tie
Description
Description
Panduit Pan-Ty Cable Tie, Double Loop Standard, Series: PLB, 7.6 in Length, 0.19 in Width, 0.05 in Thickness, 1.8 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Separate and secure two cable bundles fast and economically with our double loop cable tie. With greater resistance to UV light, this tie can be used in both indoor and outdoor environments.
Panduit PLB2S-C0 Double Loop Cable Tie is a fast and economical method to secure and separate two bundles. They reduce your part number inventory because a single part covers multiple bundle sizes. With greater resistance to harsh UV light, these ties can be used in both indoor and outdoor environments. Standard cross section and 7.6 (193mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.
Panduit - PLB2S-C0 - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Greater resistance to damage caused by ultraviolet light
- Heat stabilized material for high temperature applications up to 239 deg F indoor use
- A fast and economical method to secure and separate two bundles
- Reduces part number inventory single part covers multiple bundle sizes
- Installs easily by hand second loop can be installed with Panduit cable tie installation tools
Specifications
Specifications
Panduit - PLB2S-C0 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | UL Recognized (File #E56854), RoHS Complaint |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 7.6 |
| Overall Length (mm) | 193 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.8 |
| Maximum Bundle Diameter (mm) | 45.7 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| UPC | 07498355696 |
Panduit - PLB2S-C0 - Package Information
| UPC | 07498355696 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0321 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.3207 |
Panduit - PLB2S-C0 - Videos
| Panduit PLB2S-C0 Videos | Click to View |
|---|
