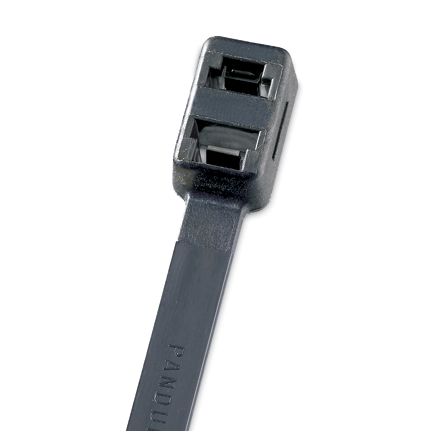

Panduit PLB5EH-C0 | Pan-Ty PLB5EH-C0 Double Loop Cable Tie, Black, UV PA6.6, 19.2"L, 125lb, PK100
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLB5EH-C0 | Pan-Ty PLB5EH-C0 Double Loop Cable Tie, Black, ...
Description
Description
Panduit PLB5EH-C0 Double Loop Cable Tie is a fast and economical method to secure and separate two bundles. They reduce your part number inventory because a single part covers multiple bundle sizes. With greater resistance to harsh UV light, these ties can be used in both indoor and outdoor environments. Extra-Heavy cross section and 19.2" (488mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.
Panduit PLB5EH-C0 | Panduit Plb5Eh-C0 Double Loop Cable Tie, Nylon 6.6, 19.2"
Panduit - PLB5EH-C0 - Features
- Panduit PLB5EH-C0 Double Loop Cable Tie is a fast and economical method to secure and separate two bundles. They reduce your part number inventory because a single part covers multiple bundle sizes. With greater resistance to harsh UV light, these ties can be used in both indoor and outdoor environments. Extra-Heavy cross section and 19.2 (488mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.
- Technical Information: RoHS Compliant
Specifications
Specifications
Panduit - PLB5EH-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLB5EH-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLB5EH-C0 |
| Item Description | Pan-Ty PLB5EH-C0 Double Loop Cable Tie, Black, UV PA6.6, 19.2"L, 125lb, PK100 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 19.2 |
| Overall Length (mm) | 488 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 5.2 |
| Maximum Bundle Diameter (mm) | 132 |
| Minimum Loop Tensile Strength (N) | 556 |
| Minimum Loop Tensile Strength (lb) | 125 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GS4EH-E |
Panduit - PLB5EH-C0 - Package Information
| UPC | 07498310864 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.2677 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 2.6767 |
Panduit - PLB5EH-C0 - Videos
| Video 1 | Click to View |
|---|
