Panduit PLC1.5I-S8-C Clamp Tie, 6.1";L (155mm), #8 (M4) Screw, Intermediate, Nylon, Natural
Regular price
$39.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLC1.5I-S8-C Clamp Tie, 6.1";L (155mm), #8 (M4) Screw,...
Regular price
$39.17
Unit price
Brand: Panduit
|
SKU:
PAN-PLC1.5I-S8-C
Regular price
$39.17
Unit price
Shipping calculated at checkout.
Description
Description

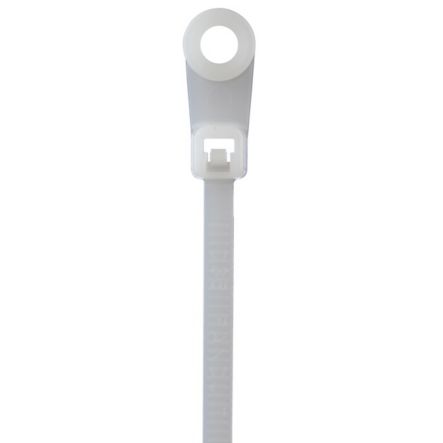

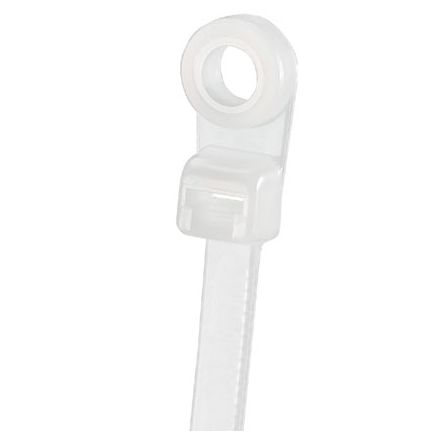

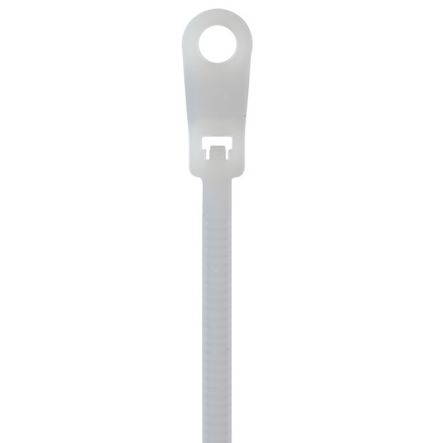

Panduit PLC1.5I-S8-C | PLC1.5I-S8-C Locking Clamp Tie
Pan-Ty locking clamp tie, intermediate cross section, #8 (M4) screw, 6.1 (155mm) length, nylon 6.6, natural, standard package.
Panduit - PLC1.5I-S8-C - Features
- Clamp Tie, 6.1";, Intermediate cross section
- For indoor use
- Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
- Design allows for bundling before or after screwing clamp in place
- One-piece construction for consistent performance and relibility
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLC1.5I-S8-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLC1.5I-S8-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLC1.5I-S8-C |
| Item Description | PLC1.5I-S8-C Locking Clamp Tie |
| Product Type | Locking Clamp Tie |
| Color | Natural |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 6.1 |
| Overall Length (mm) | 154.9 |
| Body Width (In.) | 0.135 |
| Body Width (mm) | 3.4 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 1.25 |
| Maximum Bundle Diameter (mm) | 32 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Screw Size | #8 (M4) |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mounting Hole Width (In.) | 0.33 |
| Mounting Hole Width (mm) | 8.5 |
| Standards Met | CE Complaint; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Listed; UL recognized |
| Application | To secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling |
| Part Features | Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling. |
Panduit - PLC1.5I-S8-C - Package Information
| UPC | 07498355058 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0237 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.2370 |
