Panduit PLC1.5I-S8-M | Pan-Ty Locking Clamp Tie, PA6.6, M4, 6.1&quo...
Description
Description
Secure cables easily with our locking clamp tie. Bundle before or after screwing with this durable, flexible, and weather-resistant clamp tie.

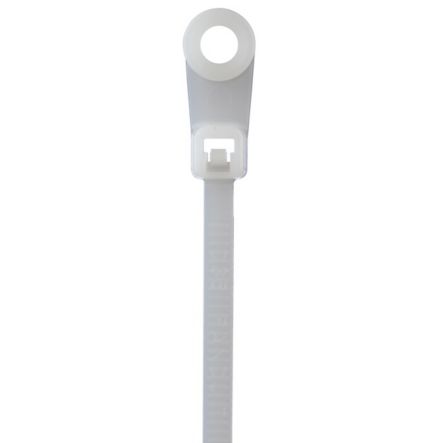

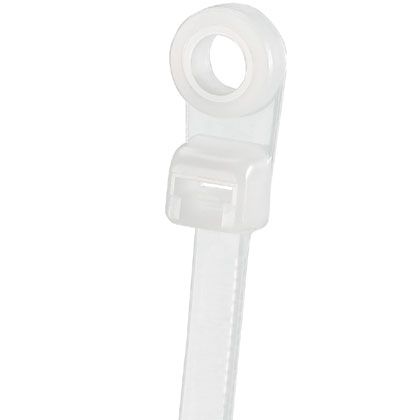

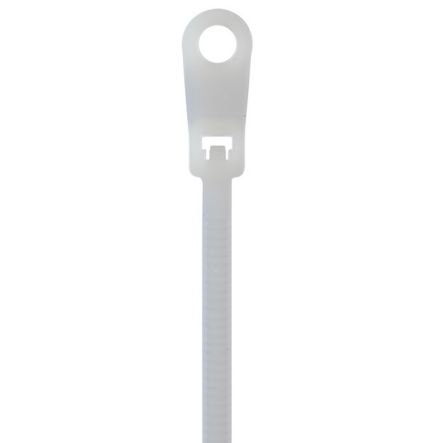

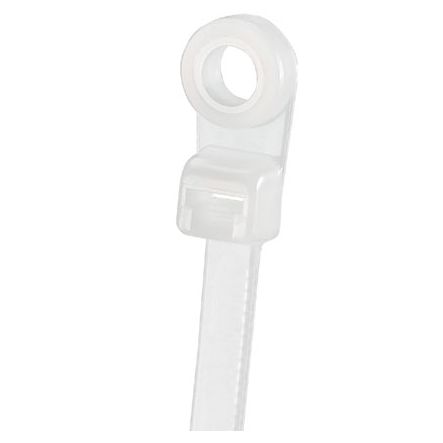

Panduit PLC1.5I-S8-M Locking Clamp Cable Ties are used to secure cable bundles to another surface such as a control panel, communication rack, wall or ceiling. The cable tie design allows for bundling before or after screwing clamp in place, for use wi th #8 (M4) screw. Intermediate cross section, 6.1" (155mm) length. Made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit Pan-Ty Clamp Tie, Intermediate Plenum Rated, Series: PLC, 6.1 in Length, 0.14 in Width, 0.05 in Thickness, 1-1/4 in Bundle Dia, Locking, 40 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - PLC1.5I-S8-M - Features
- 1-piece construction for consistent performance and reliability
- Weather-resistant material has greater resistance to damage caused by ultraviolet light
- Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
- Design allows for bundling before or after screwing clamp in place
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- For indoor use
- Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
- Design allows for bundling before or after screwing clamp in place
- One-piece construction for consistent performance and relibility
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLC1.5I-S8-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLC1.5I-S8-M |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Product Type | Locking Clamp Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 6.1 |
| Overall Length (mm) | 154.9 |
| Body Width (In.) | 0.135 |
| Body Width (mm) | 3.4 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 1.25 |
| Maximum Bundle Diameter (mm) | 32 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Screw Size | #8 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498355061 |
Panduit - PLC1.5I-S8-M - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
