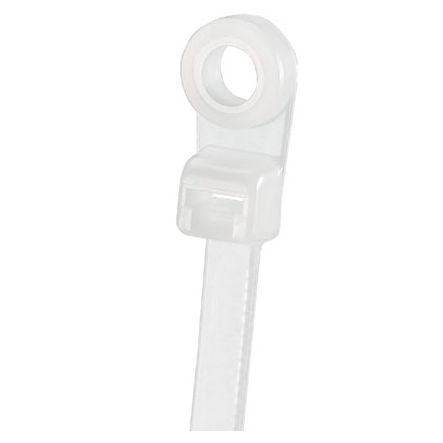

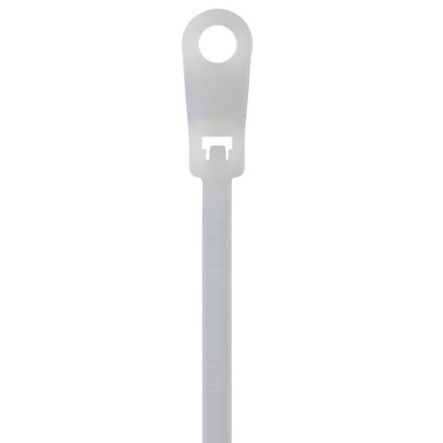

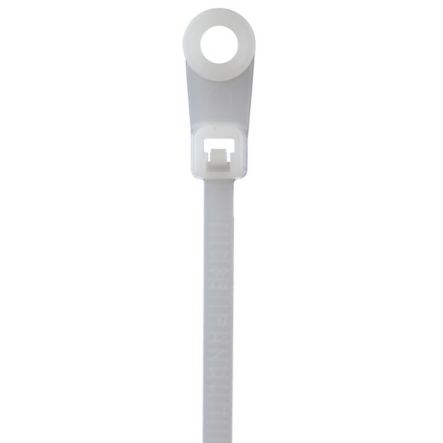

Panduit PLC1.5I-S8-M | Pan-Ty PLC1.5I-S8-M Locking Clamp Tie, PA6.6, M4, 6.1"L, 40lb, PK1000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLC1.5I-S8-M | Pan-Ty PLC1.5I-S8-M Locking Clamp Tie, PA6.6...
Description
Description
Panduit PLC1.5I-S8-M Locking Clamp Cable Ties are used to secure cable bundles to another surface such as a control panel, communication rack, wall or ceiling. The cable tie design allows for bundling before or after screwing clamp in place, for use with #8 (M4) screw. Intermediate cross section, 6.1" (155mm) length. Made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit PLC1.5I-S8-M - CABLE TIE - 6.1"LG SCREW MOUNT CABLE TIE
Specifications
Specifications
Panduit - PLC1.5I-S8-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLC1.5I-S8-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLC1.5I-S8-M |
| Item Description | Pan-Ty PLC1.5I-S8-M Locking Clamp Tie, PA6.6, M4, 6.1"L, 40lb, PK1000 |
| Product Type | Locking Clamp Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 6.1 |
| Overall Length (mm) | 154.9 |
| Body Width (In.) | 0.135 |
| Body Width (mm) | 3.4 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 1.25 |
| Maximum Bundle Diameter (mm) | 32 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Screw Size | #8 (M4) |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Mounting Hole Width (In.) | 0.335 |
| Mounting Hole Width (mm) | 8.5 |
| Mounting Hole Diameter (In.) | 0.174 |
| Mounting Hole Diameter (mm) | 4.4 |
| Standards Met | CE Complaint; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Listed; UL recognized |
| For Use With | GTS-E, GS2B-E |
| Application | Used to secure a cable bundle to another surface such a control panel, wall or ceiling. |
| Part Features | Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling. |
Panduit - PLC1.5I-S8-M - Package Information
| UPC | 07498355061 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1338 |
| Standard Ctn. Quantity | 25000 |
| Standard Ctn. Volume (cf) | 3.3446 |
