Brand: Panduit
|
SKU:
DRC-034232
Panduit PLC2S-S10-C | Pan-Ty PLC2S-S10-C Locking Clamp Tie, PA6.6, M5, 7.9"L, 50lb, PK100
Regular price
$40.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLC2S-S10-C | Pan-Ty PLC2S-S10-C Locking Clamp Tie, PA6.6, ...
Regular price
$40.68
Unit price
Description
Description

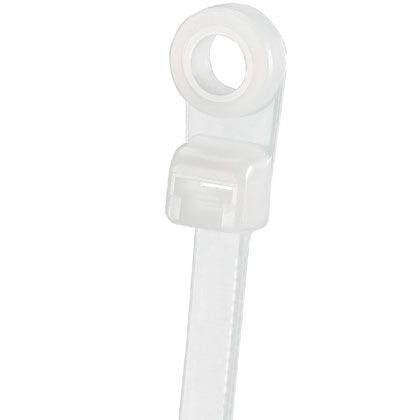

Panduit PLC2S-S10-C | Pan-Ty PLC2S-S10-C Locking Clamp Tie, PA6.6, M5, 7.9"L, 50lb, PK100
Panduit PLC2S-S10-C Locking Clamp Cable Ties are used to secure cable bundles to another surface such as a control panel, communication rack, wall or ceiling. The cable tie design allows for bundling before or after screwing clamp in place, for use with #10 (M5) screw. Standard cross section, 7.9" (201mm) length. Made of Nylon 6.6, are natural in color and come in packages of 100.
Specifications
Specifications
Panduit - PLC2S-S10-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLC2S-S10-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLC2S-S10-C |
| Item Description | Pan-Ty PLC2S-S10-C Locking Clamp Tie, PA6.6, M5, 7.9"L, 50lb, PK100 |
| Product Type | Locking Clamp Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 7.9 |
| Overall Length (mm) | 200.7 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.047 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 1.84 |
| Maximum Bundle Diameter (mm) | 47 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Screw Size | #10 (M5) |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Mounting Hole Width (In.) | 0.373 |
| Mounting Hole Width (mm) | 9.5 |
| Mounting Hole Diameter (In.) | 0.2 |
| Mounting Hole Diameter (mm) | 5.1 |
| Standards Met | CE Compliant; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Listed; UL Recognized |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E |
| Application | Used to secure a cable bundle to another surface such a control panel, wall or ceiling. |
| Part Features | Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling. |
Brand Name - PLC2S-S10-C - Package Information
| UPC | 07498355098 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0321 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.3207 |
Brand Name - PLC2S-S10-C - Videos
| Video URL 1 | Click to View |
|---|
