Panduit PLC2S-S10-C0 | Pan-Ty PLC2S-S10-C0 Locking Clamp Tie, Black...
Description
Description

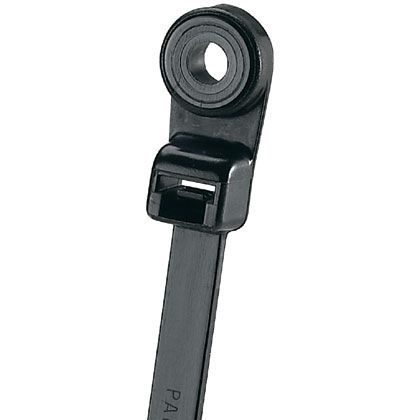

Panduit PLC2S-S10-C0 Locking Clamp Cable Ties are used to secure cable bundles to another surface such as a control panel, communication rack, wall or ceiling. The cable tie design allows for bundling before or after screwing clamp in place, for use with #10 (M5) screw. Standard cross section, 7.9" (201mm) length. Made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.
Specifications
Specifications
Panduit - PLC2S-S10-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLC2S-S10-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLC2S-S10-C0 |
| Item Description | Pan-Ty PLC2S-S10-C0 Locking Clamp Tie, Black, UV PA6.6, M5, 7.9"L, 50lb, PK100 |
| Product Type | Locking Clamp Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 7.9 |
| Overall Length (mm) | 200.7 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.047 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 1.84 |
| Maximum Bundle Diameter (mm) | 47 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Screw Size | #10 (M5) |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Mounting Hole Width (In.) | 0.373 |
| Mounting Hole Width (mm) | 9.5 |
| Mounting Hole Diameter (In.) | 0.2 |
| Mounting Hole Diameter (mm) | 5.1 |
| Standards Met | CE Compliant; CSA Certified; UL 62275 Compliant (Type 1, 11); UL Recognized |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E |
| Application | Used to secure a cable bundle to another surface such a control panel, wall or ceiling. |
| Part Features | Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling. |
Brand Name - PLC2S-S10-C0 - Package Information
| UPC | 07498355097 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0321 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.3207 |
Brand Name - PLC2S-S10-C0 - Videos
| Video URL 1 | Click to View |
|---|
