Brand: Panduit
|
SKU:
10153395

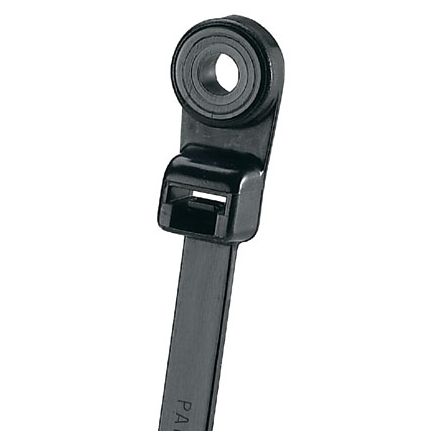

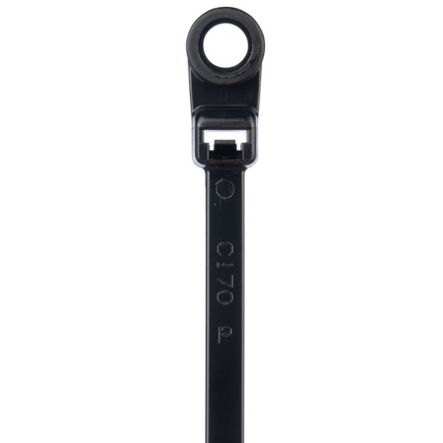

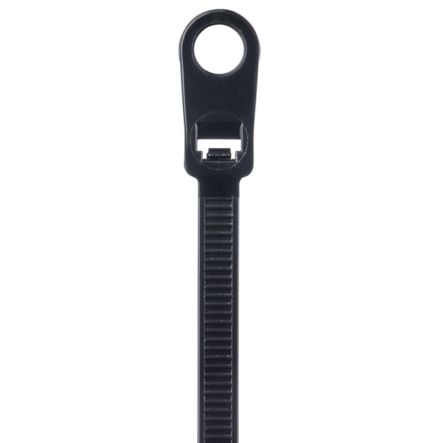

Panduit PLC3S-S10-M0 | PLC3S-S10-M0 Locking Clamp Tie
Regular price
$628.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLC3S-S10-M0 | PLC3S-S10-M0 Locking Clamp Tie
Regular price
$628.10
Unit price
Description
Description
Panduit PLC3S-S10-M0 | PLC3S-S10-M0 Locking Clamp Tie
Pan-Ty locking clamp tie, standard cross section, #10 (M5) screw, 12.0 (305mm) length, weather resistant nylon 6.6, black, bulk package.
Panduit Pan-Ty - Clamp tie - outdoor - 1 ft - black - PLC3S-S10-M0.
Specifications
Specifications
Panduit - PLC3S-S10-M0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLC3S-S10-M0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLC3S-S10-M0 |
| Item Description | PLC3S-S10-M0 Locking Clamp Tie |
| Product Type | Locking Clamp Tie |
| Color | Black |
| Environment | Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 12 |
| Overall Length (mm) | 304.8 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Screw Size | #10 (M5) |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mounting Hole Width (In.) | 0.37 |
| Mounting Hole Width (mm) | 9.5 |
| Standards Met | CE Compliant; CSA Certified; UL 62275 Compliant (Type 1, 11); UL Recognized |
| Application | General |
| Part Features | Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling. |
Panduit - PLC3S-S10-M0 - Package Information
| UPC | 07498355585 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.4005 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 2.0027 |
Panduit - PLC3S-S10-M0 - Videos
| Video 1 | Click to View |
|---|
