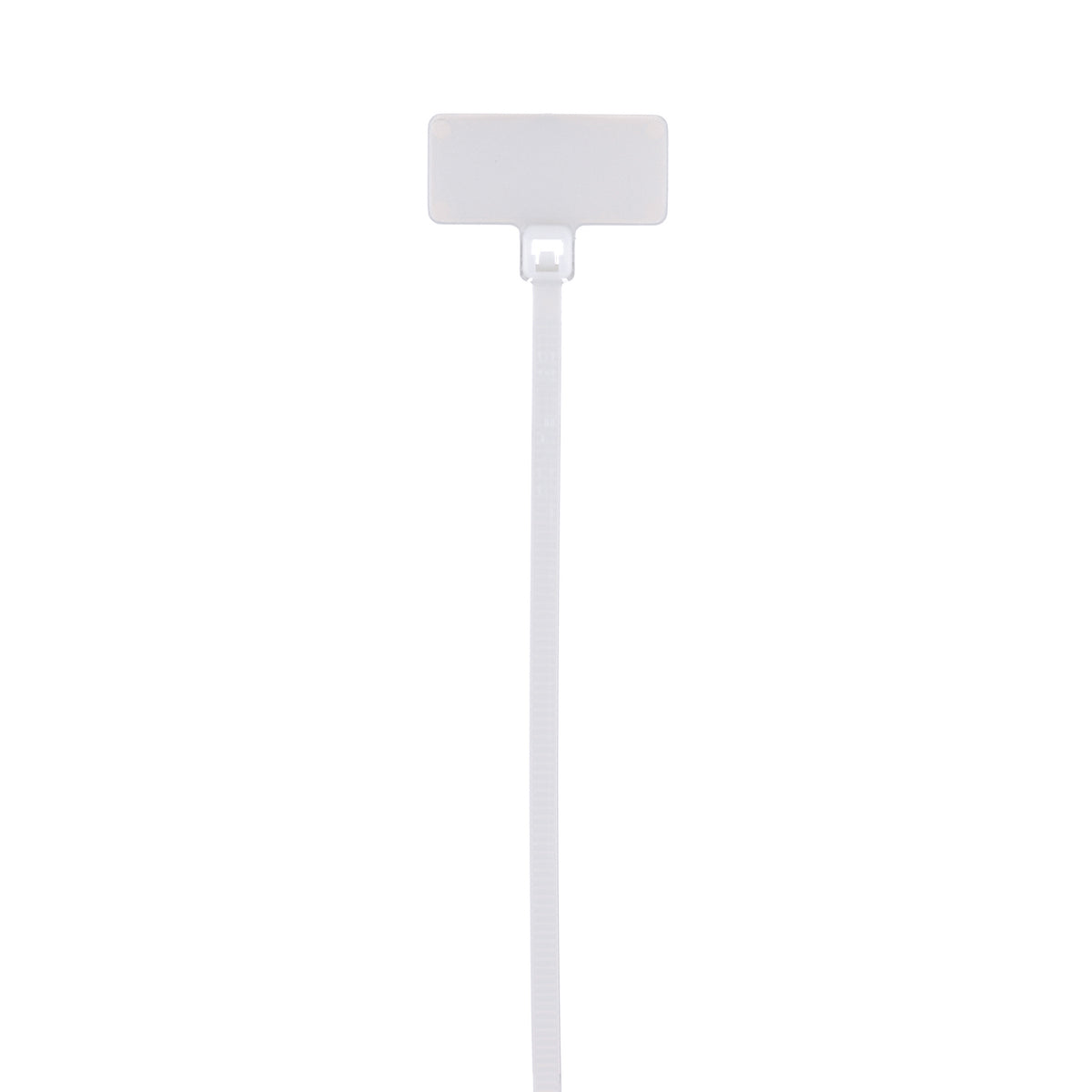

Panduit PLF1M-M10 | Premium Cable Tie
Description
Description
Fasten and identify bundles at the same time with our wire-on flag cable ties. Identify, label and document your assets for a quick, professional management process.
Pan-Ty flag tie, flag, miniature cross section, 4.3 (109mm) length, .31 x .75 (7.9 x 19.1mm) marker write-on area, nylon 6.6, white.
Panduit offers the most complete selection of cable tie styles, sizes, materials and colors to meet our customer's needs. Panduit cable ties bundle, mount and identify in countless indoor, outdoor and harsh environment applications. Panduit cable ties, wiring accessories and installation tools allow our customers to achieve the lowest total installed cost of managing wire and cable.
Panduit Pan-Ty Identification Cable Tie, Flag Miniature, Series: PLF, 4.3 in Length, 0.1 in Width, 0.05 in Thickness, 0.87 in Diameter Bundle, Lock Mechanism: Locking, 18 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, White
Panduit - PLF1M-M10 - Features
- 1-piece locking wedge for consistent performance and reliability
- Low threading force reduces operator fatigue and improves productivity
- High loop tensile strength exceeds industry standards
- Curved tip threads easily and installs faster
- Finger grip ensures positive grip during threading of tie
- Used to fasten and identify bundles at the same time, can be custom imprinted
- For indoor use
- Used to fasten and identify bundles at the same time
- One-piece construction for consistent performance and reliability
- Can be marked with PANDUIT Marker Pens or Custom imprinted with text, symbols or trademarks available using PANDUIT Cstom Hot Stamping Service
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLF1M-M10 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLF1M-M10 |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Write-On Area (In.) | 0.75W x 0.75H |
| Product Type | Premium Cable Tie |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Marker Type | Flag |
| Overall Length (In.) | 4.3 |
| Overall Length (mm) | 109 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498355717 |
Panduit - PLF1M-M10 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PLF1M-M10 - Videos
| Panduit PLF1M-M10 Video 1 | Click to View |
|---|
