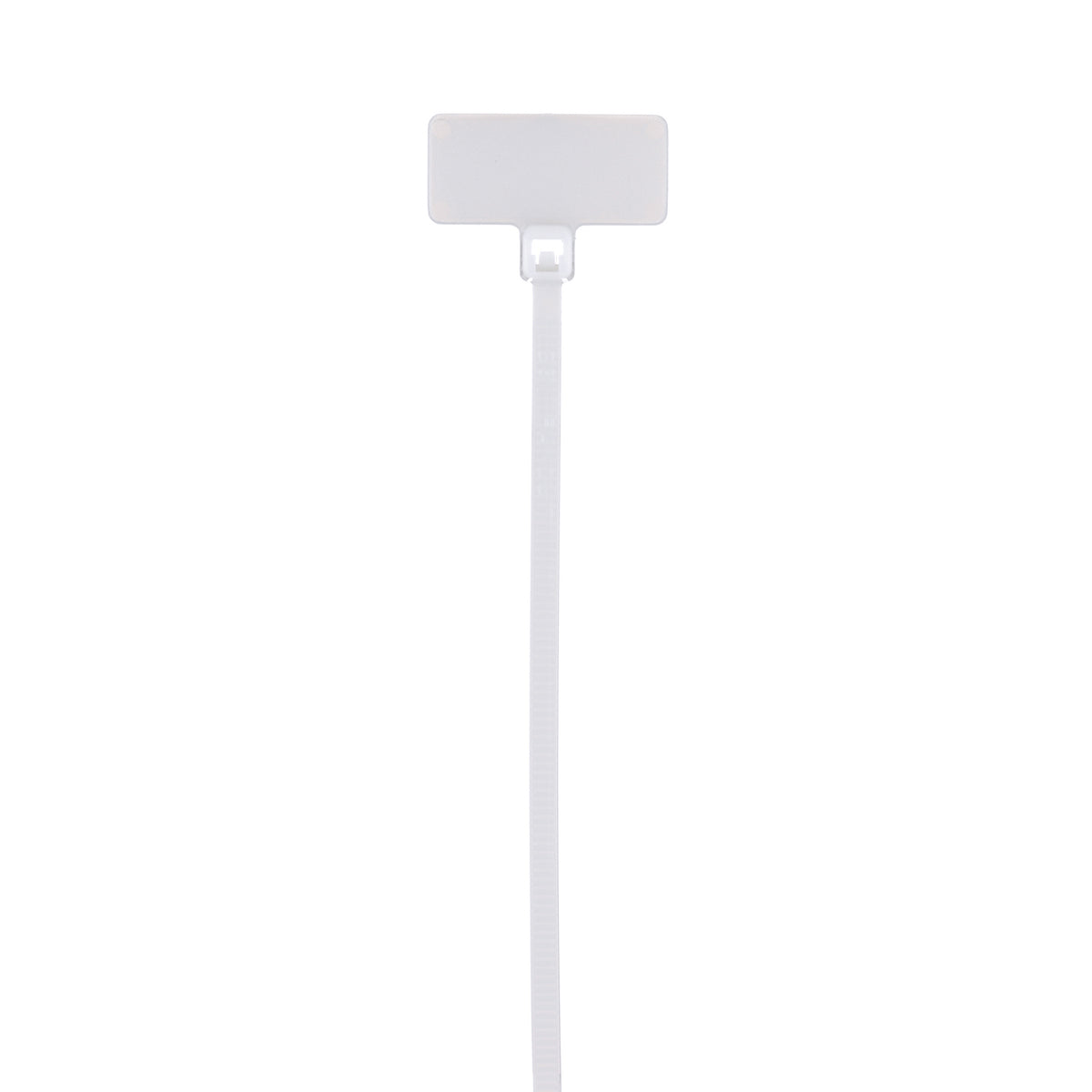

Panduit PLF1M-M2 | Cable Tie | UPC - 07498355719
Regular price
$248.34
Unit price
Brand: Panduit
|
SKU:
893868
Regular price
$248.34
Unit price
Description
Description
Panduit Pan-Ty Marker and Flag Tie, Series: PLF, 4.3 in Length, 0.1 in Width, 0.05 in Thickness, 0.87 in Diameter Bundle, Lock Mechanism: Locking, 18 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Red
Features + Benefits
- Used to fasten and identify bundles at the same time
- 1-piece construction for consistent performance and reliability
- Can be marked with Panduit marker pens or custom imprinted using Panduit custom hot stamping service
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Panduit PLF1M-M2 Key Specs
| Product Type | Cable Tie |
| Sub Brand | Pan-Ty |
| Color | Red |
| Environment | Indoor |
| For Use With | Bundles |
| Marker Type | Flag |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -70 |
| Overall Length (In.) | 4.3 |
| Overall Length (mm) | 109 |
Panduit PLF1M-M2 Data Sheets
| Catalog Cut Sheets | Mil Grade Heat Shrink Cassettes Catalog Page | Download and View |
| Catalog Cut Sheets | Mil Grade Heat Shrink Cassettes Catalog Page | Download and View |
| Part Drawings | Mil Grade Heat Shrink Part Drawing | Download and View |
