Brand: Panduit
|
SKU:
PLF1MA-M0
Panduit PLF1MA-M0 | Plf1Ma-M0 Premium Cable Tie
Regular price
$568.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLF1MA-M0 | Plf1Ma-M0 Premium Cable Tie
Regular price
$568.90
Unit price
Description
Description

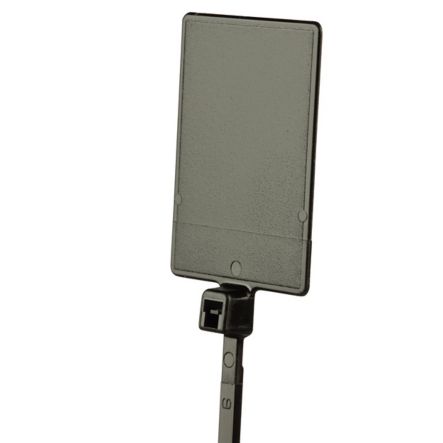

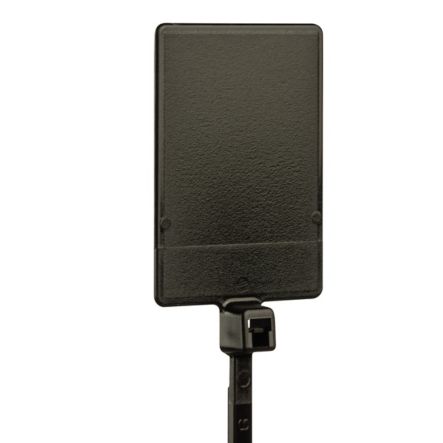

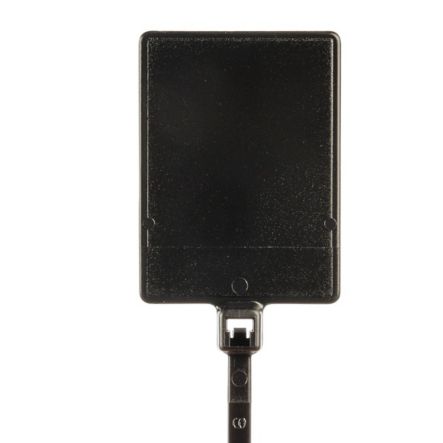

Panduit PLF1MA-M0 | Plf1Ma-M0 Premium Cable Tie
Pan-Ty flag tie, flag, miniature cross section, 5.1 (130mm) length, .76 x 1.04 (19.1 x 26.4mm) marker write-on area, weather resistant nylon 6.6, black.
Panduit - PLF1MA-M0 - Features
- Marker Tie, Flag, 5.1";, Miniature cross section
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
- Used to fasten and identify bundles at the same time
- One-piece construction for consistent performance and reliability
- Can be marked with PANDUIT Marker Pens or Custom imprinted with text, symbols or trademarks available using PANDUIT Custom Hot Stamping Service
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
- Complementary mounts available
Specifications
Specifications
Panduit - PLF1MA-M0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLF1MA-M0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLF1MA-M0 |
| Item Description | Plf1Ma-M0 Premium Cable Tie |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Marker Type | Flag |
| Overall Length (In.) | 5.1 |
| Overall Length (mm) | 130 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -70 |
| Standards Met | CE Compliant,RoHS Compliant |
| For Use With | Bundles |
| Application | General |
| Part Features | Used to fasten and identify bundles at the same time, Can be custom imprinted |
Panduit - PLF1MA-M0 - Package Information
| UPC | 07498355728 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1794 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 1.7943 |
Panduit - PLF1MA-M0 - Videos
| Video 1 | Click to View |
|---|
