Brand: Panduit
|
SKU:
104724

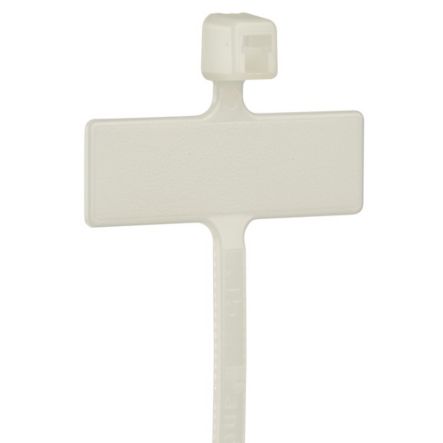

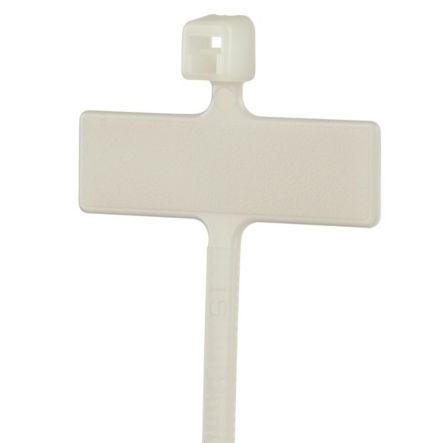

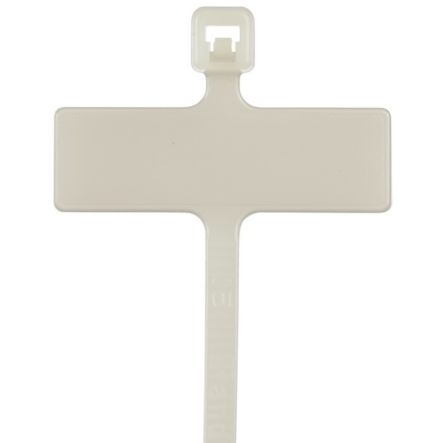

Panduit PLM1M-C | Pan-Ty Plm1M-C Write-On Cable Tie, Pa6.6, 3.9"L, 18Lb, Pk100
Regular price
$37.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLM1M-C | Pan-Ty Plm1M-C Write-On Cable Tie, Pa6.6, 3.9&quo...
Regular price
$37.86
Unit price
Description
Description
Panduit PLM1M-C | Pan-Ty Plm1M-C Write-On Cable Tie, Pa6.6, 3.9"L, 18Lb, Pk100
Panduit PLM1M-C Wrap Style Marker Ties are used to fasten and identify bundles at the same time. . The curved tip is easy to pick up from flat surfaces and allows faster initial threading. Miniature cross section, 3.9" (99mm) length, .26 x .95" (6.6 x 24.1mm) marker write-on area. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 100. Can be used with Panduit permanent marker pens
Panduit - PLM1M-C - Features
- For indoor use
- Used to fasten and identify bundles at the same time
- One-piece construction for consistent performance and reliability
- Can be marked with Panduit marker pens or custom imprinted with text, symbols, or trademarks available using Panduit ustom Hot Stamping Service
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLM1M-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLM1M-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLM1M-C |
| Item Description | Pan-Ty Plm1M-C Write-On Cable Tie, Pa6.6, 3.9"L, 18Lb, Pk100 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Marker Type | Wrap |
| Overall Length (In.) | 3.9 |
| Overall Length (mm) | 99 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.035 |
| Body Thickness (mm) | 0.9 |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19 |
| Minimum Bundle Diameter (In.) | 0.18 |
| Minimum Bundle Diameter (mm) | 4.6 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -70 |
| Write-On Area Height (In.) | 0.26 |
| Write-On Area Height (mm) | 6.6 |
| Write-On Area Width (In.) | 0.95 |
| Write-On Area Width (mm) | 24.1 |
| Standards Met | CE Compliant,RoHS Compliant |
| Military Cross Reference Number | MS3368-5-9E |
| For Use With | Bundles |
| Application | General |
| Part Features | Used to fasten and identify bundles at the same time, Can be custom imprinted |
Panduit - PLM1M-C - Package Information
| UPC | 07498355302 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0237 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.2370 |
Panduit - PLM1M-C - Videos
| Video 1 | Click to View |
|---|
