Brand: Panduit
|
SKU:
PLM1M-M-EA
Panduit PLM1M-M | Pan-Ty Plm1M-M Write-On Cable Tie, Pa6.6, 3.9"L, 18Lb, Pk1000
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLM1M-M | Pan-Ty Plm1M-M Write-On Cable Tie, Pa6.6, 3.9&quo...
Regular price
$1.46
Unit price
Description
Description
Panduit PLM1M-M | Pan-Ty Plm1M-M Write-On Cable Tie, Pa6.6, 3.9"L, 18Lb, Pk1000

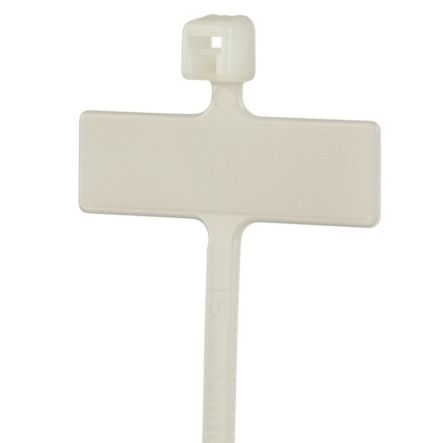

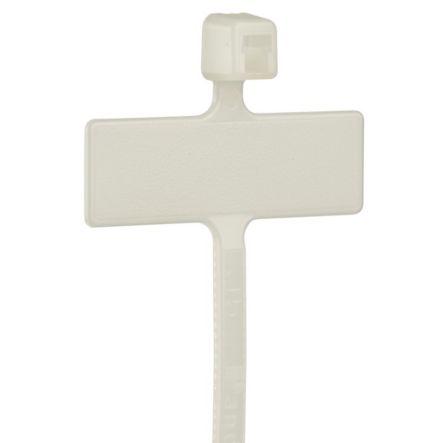

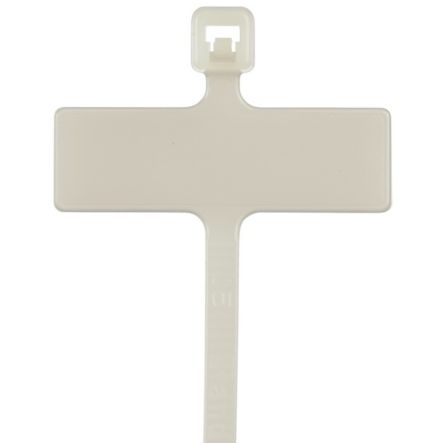

Panduit PLM1M-M Wrap Style Marker Ties are used to fasten and identify bundles at the same time. The curved tip is easy to pick up from flat surfaces and allows faster initial threading. Miniature cross section, 3.9" (99mm) length, .26 x .95" (6.6 x 24.1mm) marker write-on area. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000. Can be used with Panduit permanent marker pens.
Panduit - PLM1M-M - Features
- Panduit offers the most complete selection of cable tie styles, sizes, materials and colors to meet our customer's needs. Panduit cable ties bundle, mount and identify in countless indoor, outdoor and harsh environment applications. Panduit cable ties, wiring accessories and installation tools allow our customers to achieve the lowest total installed cost of managing wire and cable.
- Panduit Pan-Ty Marker Cable Tie, Miniature, 3.9 in Length, 0.1 in Width, 0.04 in Thickness, 3/4 in Bundle Dia, Lock Mechanism: Locking, 18 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
- 1-piece locking wedge provides consistent, reliable performance
- Low threading force reduces operator fatigue and improves productivity
- High loop tensile strength exceeds industry standards
- Curved tip threads easily and installs faster
- Finger grip ensures positive grip during threading of tie
- Used to fasten and identify bundles at the same time, can be custom imprinted
Specifications
Specifications
Panduit - PLM1M-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLM1M-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLM1M-M |
| Item Description | Pan-Ty Plm1M-M Write-On Cable Tie, Pa6.6, 3.9"L, 18Lb, Pk1000 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Marker Type | Wrap |
| Overall Length (In.) | 3.9 |
| Overall Length (mm) | 99 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.035 |
| Body Thickness (mm) | 0.9 |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19 |
| Minimum Bundle Diameter (In.) | 0.18 |
| Minimum Bundle Diameter (mm) | 4.6 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -70 |
| Write-On Area Height (In.) | 0.26 |
| Write-On Area Height (mm) | 6.6 |
| Write-On Area Width (In.) | 0.95 |
| Write-On Area Width (mm) | 24.1 |
| Standards Met | CE Compliant,RoHS Compliant |
| Military Cross Reference Number | MS3368-5-9E |
| For Use With | Bundles |
| Application | General |
| Part Features | Used to fasten and identify bundles at the same time, Can be custom imprinted |
| MPN: | PLM1M-M |
| Bundle Diameter: | 3/4 in |
| Color: | Natural |
| Length: | 3.9 in |
| Lock Mechanism: | Locking |
| Material: | Nylon 6.6 |
| Series: | PLM |
| Temperature Rating: | -76 to 185 deg F |
| Tensile Strength: | 18 lb |
| Thickness: | 0.04 in |
| Type: | Miniature |
| Width: | 0.1 in |
Panduit - PLM1M-M - Package Information
| UPC | 07498355301 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1257 |
| Standard Ctn. Quantity | 25000 |
| Standard Ctn. Volume (cf) | 3.1414 |
Panduit - PLM1M-M - Videos
| Video 1 | Click to View |
|---|
