Panduit PLM1M-M | Pan-Ty Write-On Cable Tie, PA6.6, 3.9"L, 18l...
Description
Description
Fasten and label cables in one go with our write-on cable tie. Easy to pick up and thread, durable and natural. Mark with Panduit pens for clear identification.

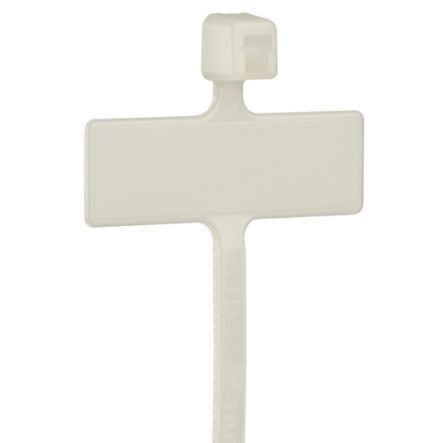

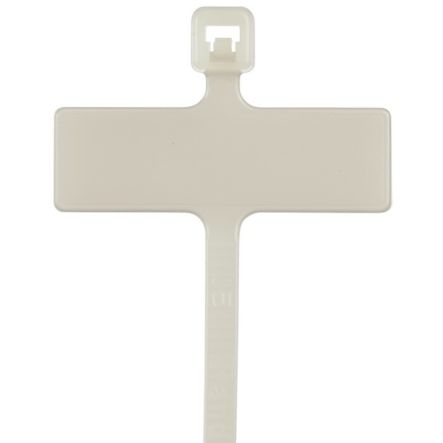

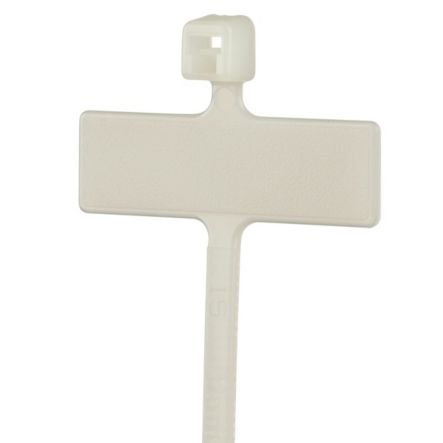

Panduit PLM1M-M Wrap Style Marker Ties are used to fasten and identify bundles at the same time. They can be marked with Panduit marker pens or custom imprinted with text, symbols or trademarks using Panduit Custom Hot Stamping Service. The curved tip is easy to pick up from flat surfaces and allows faster initial threading. Miniature cross section, 3.9" (99mm) length, .26 x .95" (6.6 x 24.1mm) marker write-on area. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000 .
Panduit offers the most complete selection of cable tie styles, sizes, materials and colors to meet our customer's needs. Panduit cable ties bundle, mount and identify in countless indoor, outdoor and harsh environment applications. Panduit cable ties, wiring accessories and installation tools allow our customers to achieve the lowest total installed cost of managing wire and cable.
Panduit Pan-Ty Marker Cable Tie, Miniature, 3.9 in Length, 0.1 in Width, 0.04 in Thickness, 3/4 in Bundle Dia, Lock Mechanism: Locking, 18 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - PLM1M-M - Features
- 1-piece locking wedge provides consistent, reliable performance
- Low threading force reduces operator fatigue and improves productivity
- High loop tensile strength exceeds industry standards
- Curved tip threads easily and installs faster
- Finger grip ensures positive grip during threading of tie
- Used to fasten and identify bundles at the same time, can be custom imprinted
- For indoor use
- Used to fasten and identify bundles at the same time
- One-piece construction for consistent performance and reliability
- Can be marked with Panduit marker pens or custom imprinted with text, symbols, or trademarks available using Panduit ustom Hot Stamping Service
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLM1M-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLM1M-M |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Write-On Area (In.) | 0.95W x 0.26H |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Marker Type | Wrap |
| Overall Length (In.) | 3.9 |
| Overall Length (mm) | 99 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.035 |
| Body Thickness (mm) | 0.9 |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19 |
| Minimum Bundle Diameter (In.) | 0.18 |
| Minimum Bundle Diameter (mm) | 4.6 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498355301 |
Panduit - PLM1M-M - Videos
| Panduit PLM1M-M Video 1 | Click to View |
|---|
