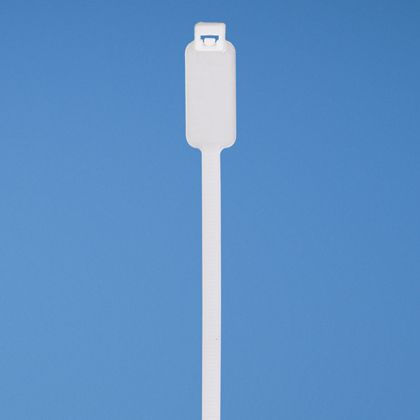

Panduit PLM2S-C | Premium Cable Tie
Regular price
$71.80
Unit price
Brand: Panduit
|
SKU:
104729
Regular price
$71.80
Unit price
Description
Description
Panduit PLM2S-C | Premium Cable Tie
Fasten and label cables in one go with our write-on cable tie. Easy to pick up and thread, durable and natural. Mark with Panduit pens for clear identification.
Pan-Ty marker tie, wrap, standard cross section, 7.4 (188mm) length, .44 x .87 (11.1 x 22.1mm) marker write-on area, nylon 6.6, natural, standard package.
Panduit Pan-Ty Identification Cable Tie, Standard Wrap, Series: PLM, 7.4 in Length, 0.19 in Width, 0.05 in Thickness, 1-3/4 in Bundle Dia, Lock Mechanism: Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - PLM2S-C - Features
- Used to fasten and identify bundles at the same time
- 1-piece construction for consistent performance and reliability
- Can be marked with Panduit marker pens or custom imprinted using Panduit custom hot stamping service
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- For indoor use
- Used for normal bundling and through-panel applications
- Small head height allows more efficient use of space in compact areas
- Exclusive two-piece design offers the lowest threading force in the industry
- Average 14% lighter than one-pie cable ties
- Releasable prior to final tensioning for bundle modifications
- Straight Tip design
Specifications
Specifications
Panduit - PLM2S-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLM2S-C |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Write-On Area (In.) | 0.44W x 0.44H |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Marker Type | Wrap |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Body Width (In.) | 0.185 |
| Body Width (mm) | 4.7 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.75 |
| Maximum Bundle Diameter (mm) | 45 |
| Minimum Bundle Diameter (In.) | 0.37 |
| Minimum Bundle Diameter (mm) | 9.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498355319 |
Panduit - PLM2S-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PLM2S-C - Videos
| Panduit PLM2S-C Video 1 | Click to View |
|---|
