Brand: Panduit
|
SKU:
192563
Panduit PLP1.5I-M | Pan-Ty PLP1.5I-M Locking Push Mount Tie, PA6.6, 6.13"L, 40lb, PK1000
Regular price
$246.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLP1.5I-M | Pan-Ty PLP1.5I-M Locking Push Mount Tie, PA6.6,...
Regular price
$246.66
Unit price
Description
Description

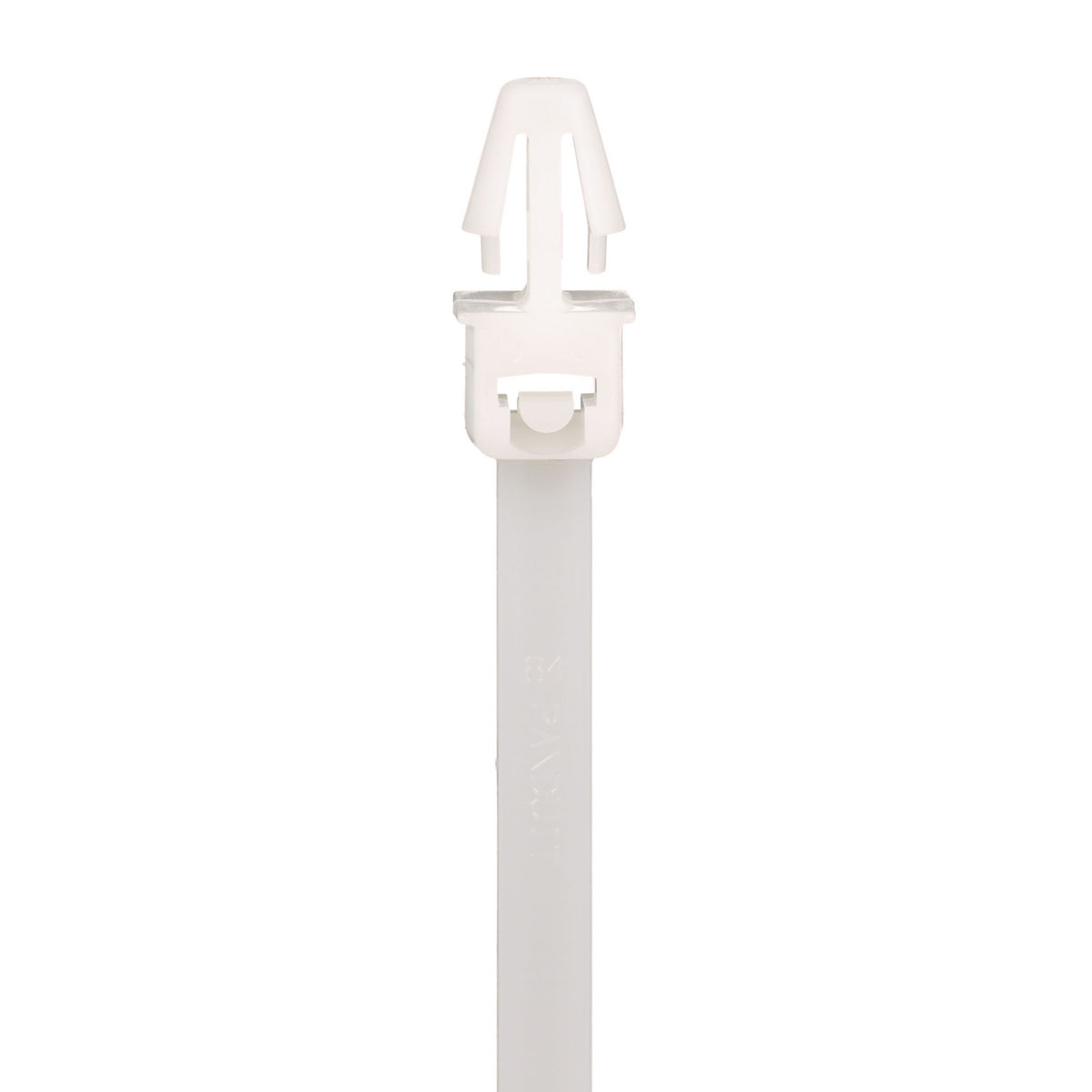

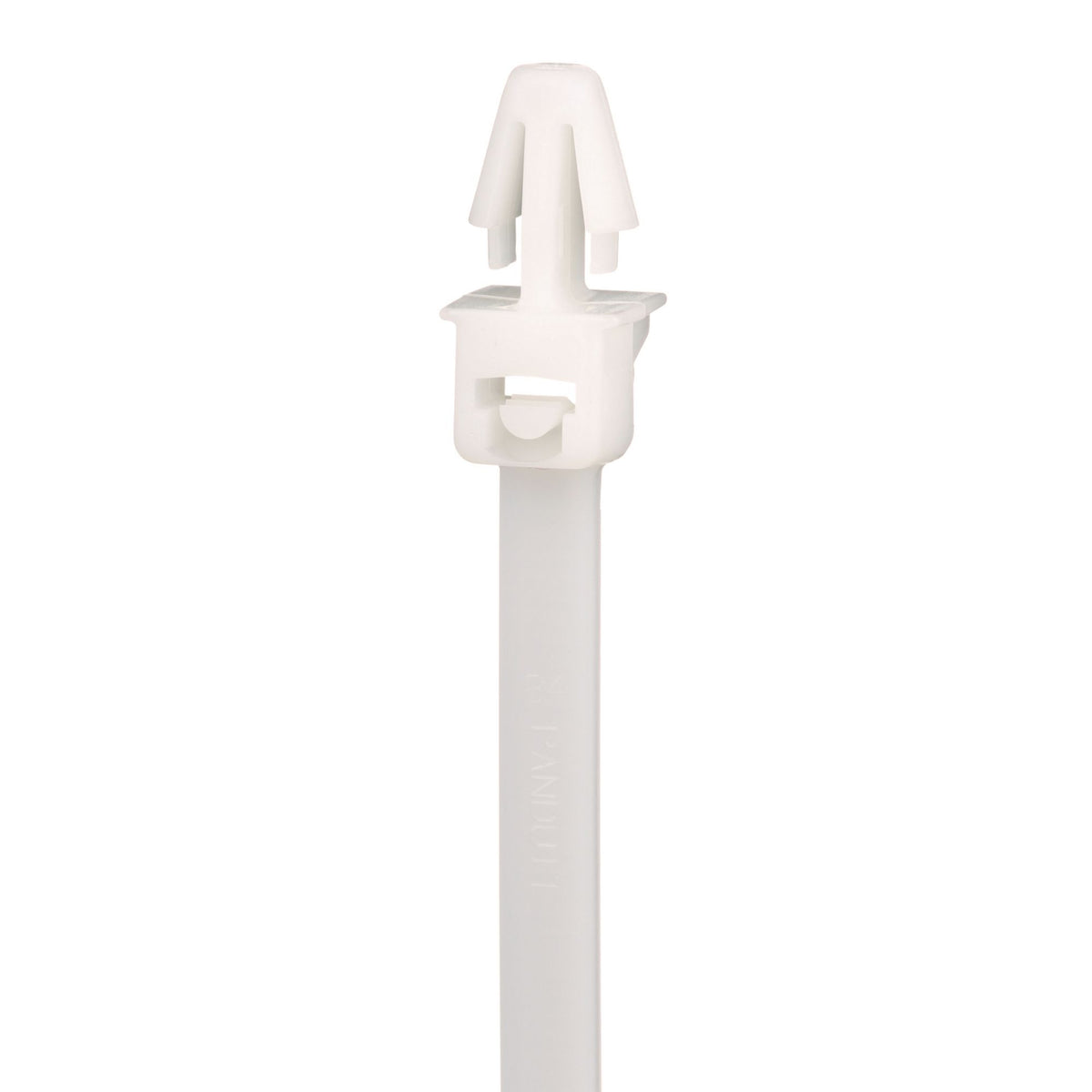

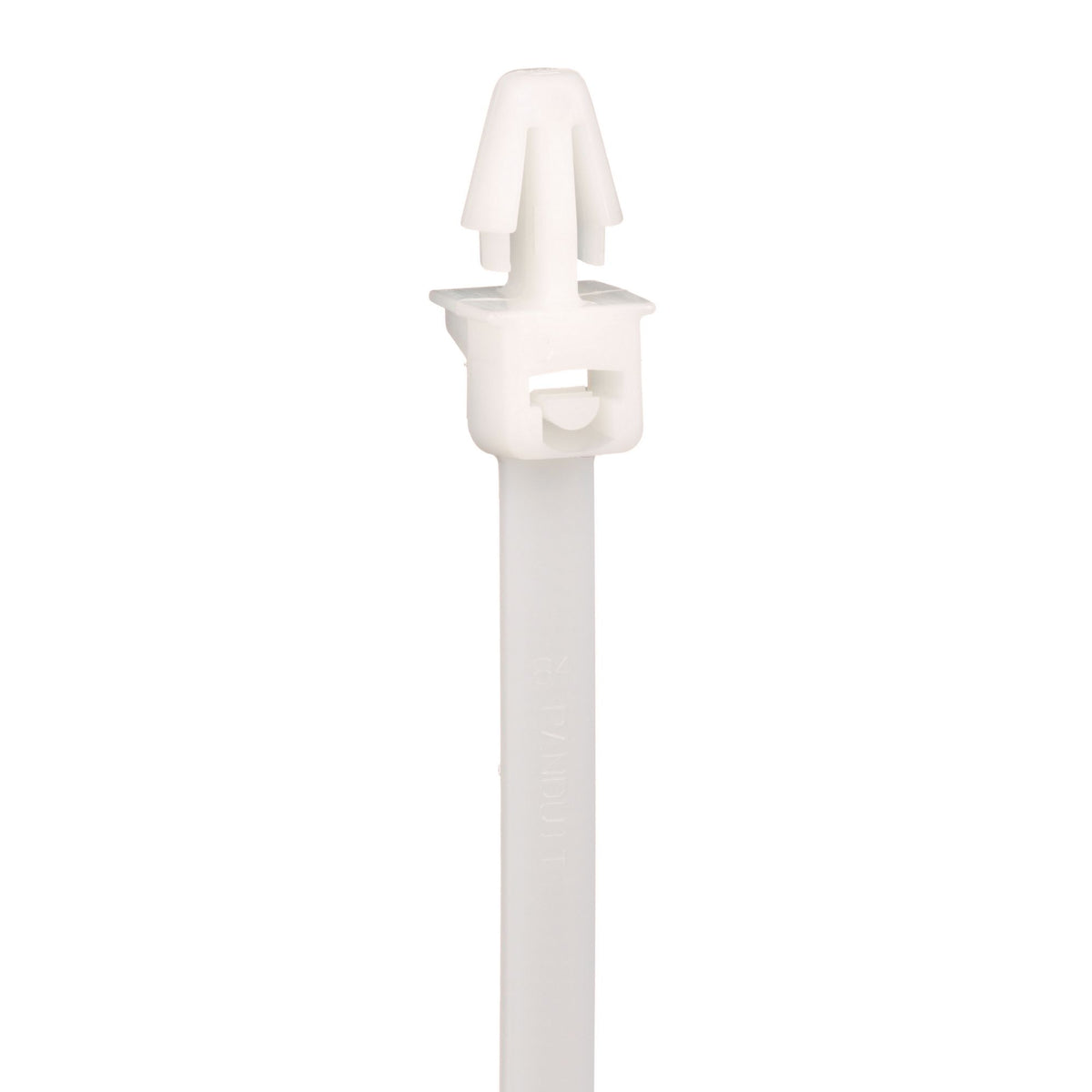

Panduit PLP1.5I-M | Pan-Ty PLP1.5I-M Locking Push Mount Tie, PA6.6, 6.13"L, 40lb, PK1000
Pan-Ty LockingPush Mount Ties use an easy-to-use all-in-one wingless design to attach bundles to surfaces in confined spaces. Plus, with Nylon 6.6 material, it's ideal for general indoor environments. Intermediate cross section, 6.1in, Tensile Strength: 178, Natural, 1000pc.
Panduit PLP1.5I-M | CABLE TIE | 6.1 feet CABLE TIE 40 LBS PUSH
Specifications
Specifications
Panduit - PLP1.5I-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLP1.5I-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLP1.5I-M |
| Item Description | Pan-Ty PLP1.5I-M Locking Push Mount Tie, PA6.6, 6.13"L, 40lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 6.13 |
| Overall Length (mm) | 156 |
| Body Width (In.) | 0.135 |
| Body Width (mm) | 3.4 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 1.25 |
| Maximum Bundle Diameter (mm) | 31.8 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Standards Met | UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS |
| Application | General |
| Part Features | Cable tie, mount and fastener in a single part. Used to attach bundles to another surface. Anchor is easily pressed into a preformed hole and locks in place. |
Panduit - PLP1.5I-M - Package Information
| UPC | 07498355501 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1338 |
| Standard Ctn. Quantity | 25000 |
| Standard Ctn. Volume (cf) | 3.3446 |
Panduit - PLP1.5I-M - Videos
| Video 1 | Click to View |
|---|
