Brand: Panduit
|
SKU:
PLP2S-M-EA

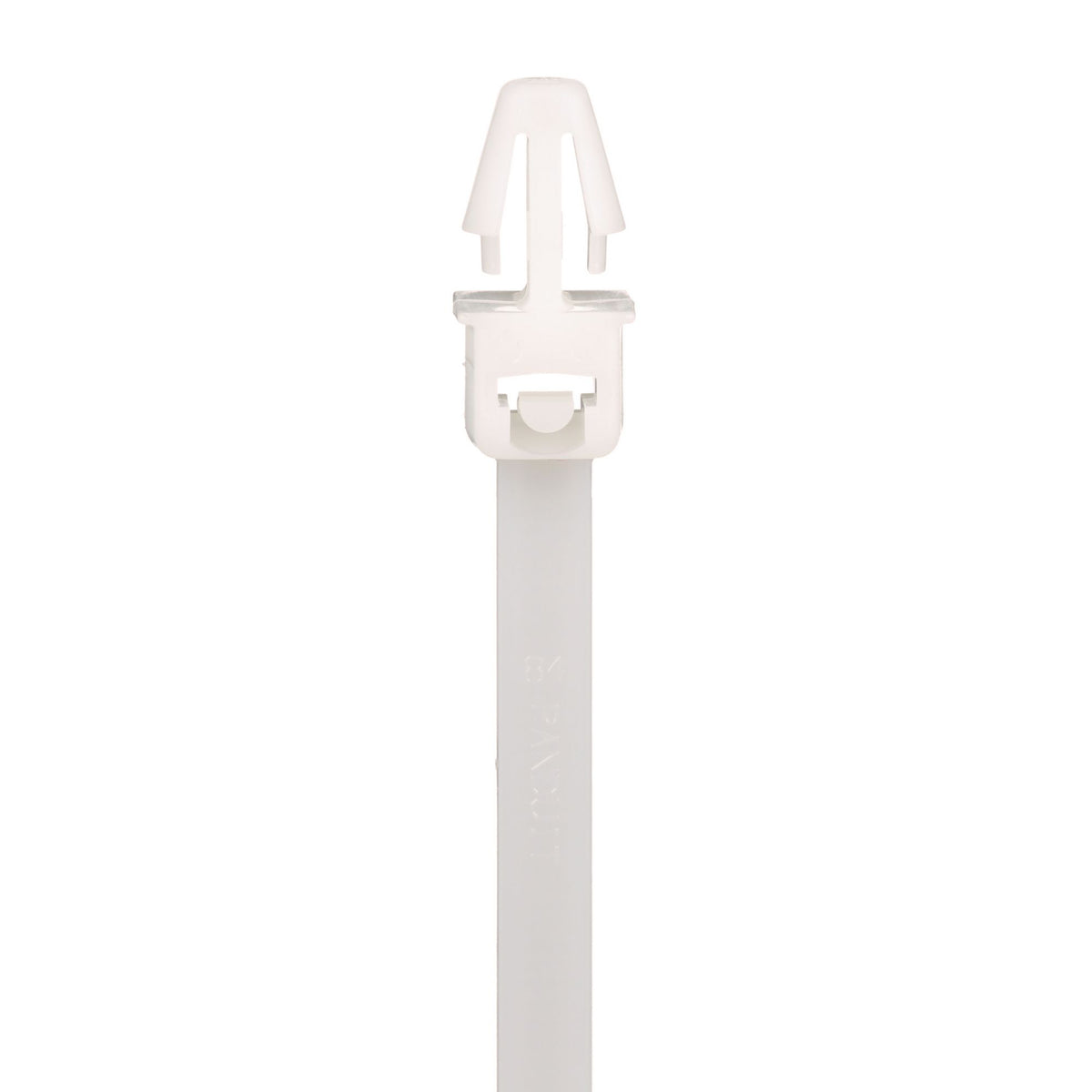

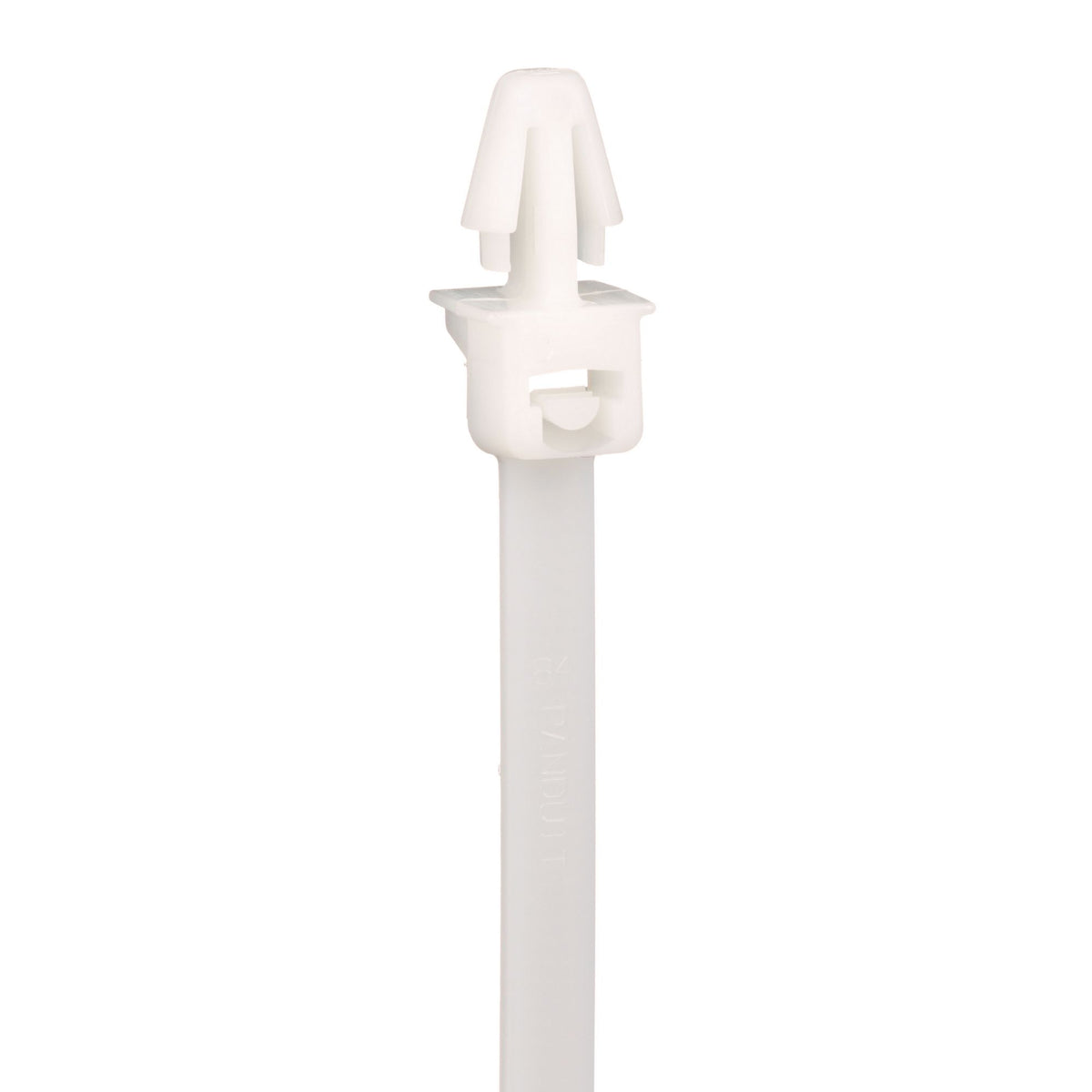

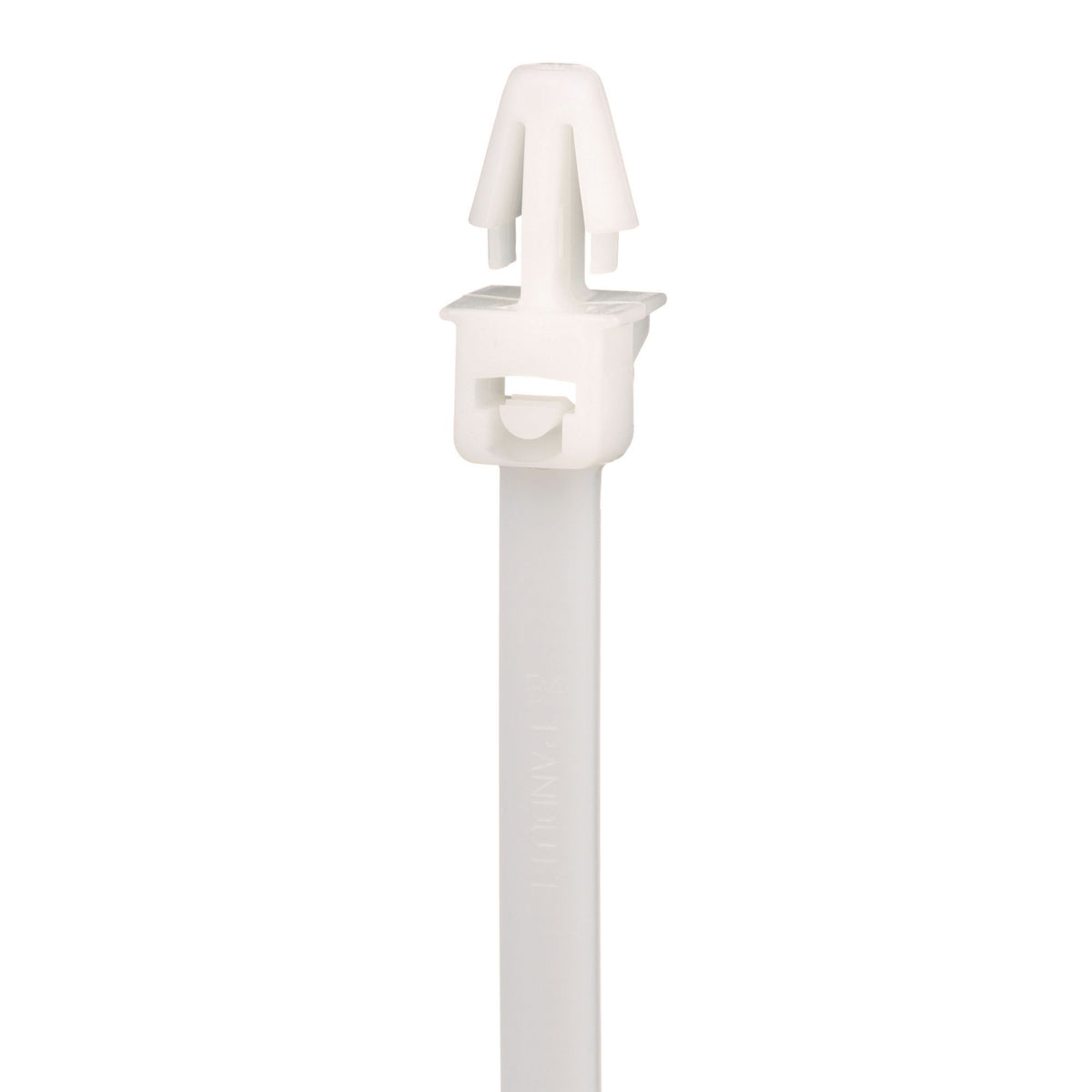

Panduit PLP2S-M | Pan-Ty PLP2S-M Locking Push Mount Tie, PA6.6, 7.9"L, 50lb, PK1000
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLP2S-M | Pan-Ty PLP2S-M Locking Push Mount Tie, PA6.6, 7.9...
Regular price
$1.46
Unit price
Description
Description
Panduit PLP2S-M | Pan-Ty PLP2S-M Locking Push Mount Tie, PA6.6, 7.9"L, 50lb, PK1000
Panduit PLP2S-M Locking Push Mount Ties have an easy-to-use all-in-one wingless design to attach bundles to surfaces in confined spaces. The anchor is pressed into a pre-formed hole and locks in place. Standard cross section, 7.88" (200mm) length. Made of Nylon 6.6, they are natural in color and come in packages of 1000.
Panduit PLP2S-M - CABLE TIE - PAN0TY PUSH MOUNT TIES
Specifications
Specifications
Panduit - PLP2S-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLP2S-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLP2S-M |
| Item Description | Pan-Ty PLP2S-M Locking Push Mount Tie, PA6.6, 7.9"L, 50lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 7.9 |
| Overall Length (mm) | 200 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.05 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.75 |
| Maximum Bundle Diameter (mm) | 44.5 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Part Features | Cable tie, mount and fastener in a single part. Used to attach bundles to another surface. Anchor is easily pressed into a preformed hole and locks in place. |
Panduit - PLP2S-M - Package Information
| UPC | 07498355511 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2677 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 2.6767 |
Panduit - PLP2S-M - Videos
| Video 1 | Click to View |
|---|
