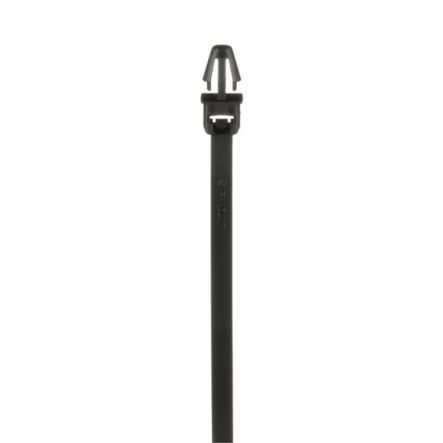

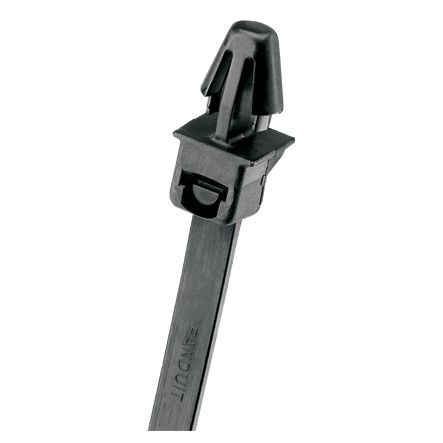

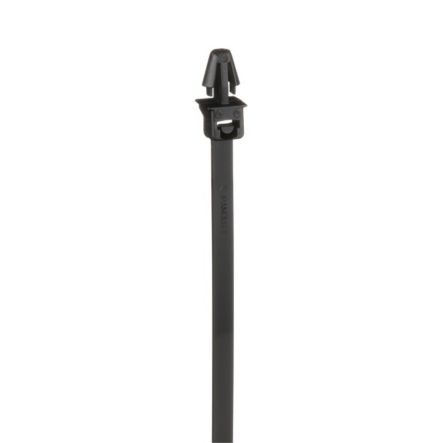

Panduit PLP2S-M0 Locking Push Mount Ties have an easy-to-use all-in-one wingless design to attach bundles to surfaces in confined spaces. The anchor is pressed into a pre-formed hole and locks in place. Made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light. Standard cross section, 7.88" (200mm) length. They are black in color and come in packages of 1000.
Panduit PLP2S-M0 - CABLE TIE - PAN0TY PUSH MOUNT TIES
Specifications
Specifications
Panduit - PLP2S-M0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLP2S-M0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLP2S-M0 |
| Item Description | Pan-Ty PLP2S-M0 Locking Push Mount Tie, Black, UV PA6.6, 7.9"L, 50lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 7.9 |
| Overall Length (mm) | 200 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.05 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.75 |
| Maximum Bundle Diameter (mm) | 44.5 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Part Features | Cable tie, mount and fastener in a single part. Used to attach bundles to another surface. Anchor is easily pressed into a preformed hole and locks in place. |
Panduit - PLP2S-M0 - Package Information
| UPC | 07498355924 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2677 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 2.6767 |
