Brand: Panduit
|
SKU:
1001128
Panduit PLST4HS25-TL300 | Cable Ties | UPC - 07498375411
Regular price
$306.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLST4HS25-TL300 | Cable Ties | UPC - 07498375411
Regular price
$306.42
Unit price
Description
Description

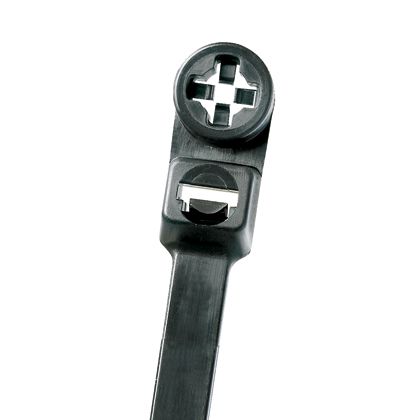

Panduit Pan-Ty Cable Tie, Light Heavy, Series: PLST2/4H, 15.3 in Length, 0.3 in Width, 0.08 in Thickness, 4 in Diameter Bundle, Lock Mechanism: Locking, 120 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Black
Features + Benefits
- Heat stabilized weather-resistant material has greater resistance to damage caused by UV light and for high temperature applications up to 212 deg F
- Integral mount pushes onto a threaded stud and tie wraps around bundle
- Mid mount style (PLST_SC) centers the wire bundle over the stud
- Tie can be removed from the stud by turning counterclockwise
- Releasable style available (PRST)
- Heat stabilized nylon 6.6
Panduit PLST4HS25-TL300 Key Specs
| Product Type | Cable Ties |
| Color | Black |
| Environment | Indoor/Outdoor |
| Sub Brand | Pan-Ty |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Material | Heat Stabilized Weather Resistant Nylon 6.6 |
| Resistance Properties | Heat and UV Resistant |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Bundle Diameter (In.) | 0.18 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Length (In.) | 15.3 |
| Overall Length (mm) | 389 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Standards Met | UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Complaint |
| Part Features | Heat stabilized weather resistant integral mount pushes onto a threaded stud and the tie wraps around the bundle. |
Panduit PLST4HS25-TL300 Data Sheets
| Catalog Cut Sheets | Pan-Ty Stud Mounted Cable Ties Heat Stabilized | Download and View |
| Part Drawings | Stud Mount Cable Tie PLST2/4H Series - Customer Drawing | Download and View |
| Videos | Premium Cable Ties | Download and View |
| Selection Guides | Cable Ties Product Selection Guide. | Download and View |
