Panduit PLT1.5I-M20 | Cable Ties | UPC - 07498354947
Regular price
$91.37
Unit price
Brand: Panduit
|
SKU:
885109
Regular price
$91.37
Unit price
Description
Description

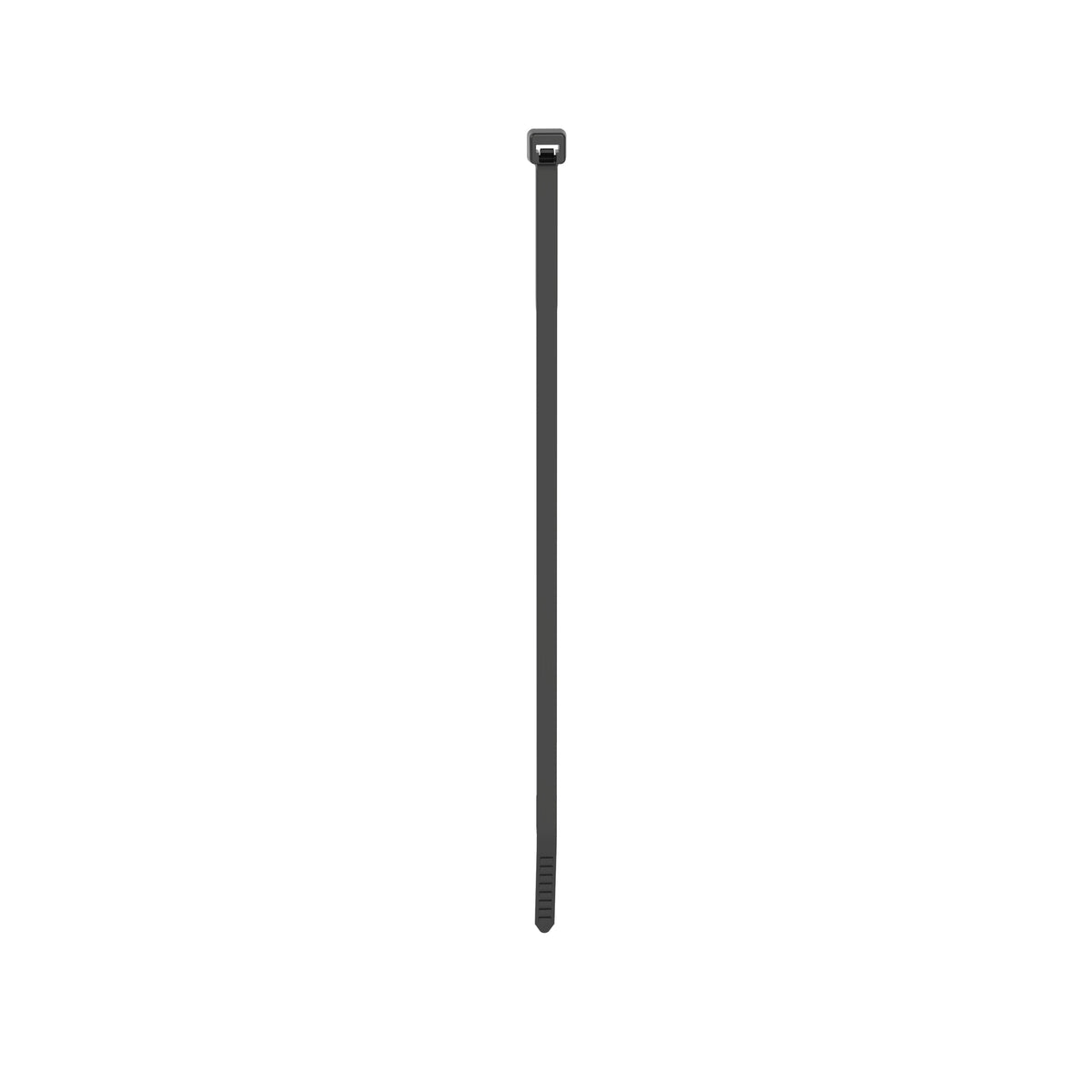

Panduit Pan-Ty Cable Tie, Intermediate Plenum Rated, Series: PLT, 5.6 in Length, 0.14 in Width, 0.05 in Thickness, 1.38 in Bundle Dia, Locking, 40 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Features + Benefits
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
Panduit PLT1.5I-M20 Key Specs
| Product Type | Cable Ties |
| Color | Black |
| Environment | Indoor |
| Sub Brand | Pan-Ty |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 1.38 |
| Maximum Bundle Diameter (mm) | 35 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
Panduit PLT1.5I-M20 Data Sheets
| Part Drawings | Part Drawing - PDF - GB3150FB A RV 00B | Download and View |
| Catalog Cut Sheets | SUPER-GRIP Adhesive Backed Cable Tie Mounts SGABM20 | Download and View |
| Product Bulletins | Super-Grip Cable Ties and Cable Tie Mounts | Download and View |
