Brand: Panduit
|
SKU:
PAN-PLT1.5I-M4
Panduit PLT1.5I-M4Y | Plt1.5I-M4Y Premium Cable Tie
Regular price
$99.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT1.5I-M4Y | Plt1.5I-M4Y Premium Cable Tie
Regular price
$99.21
Unit price
Brand: Panduit
|
SKU:
PAN-PLT1.5I-M4
Regular price
$99.21
Unit price
Shipping calculated at checkout.
Description
Description

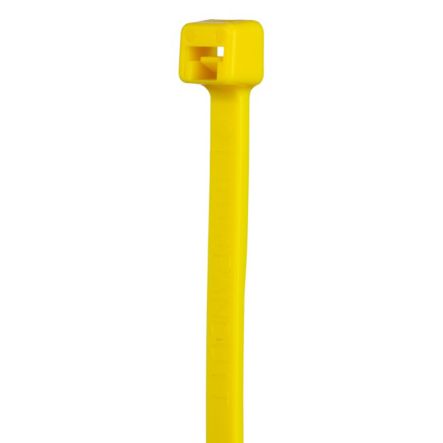

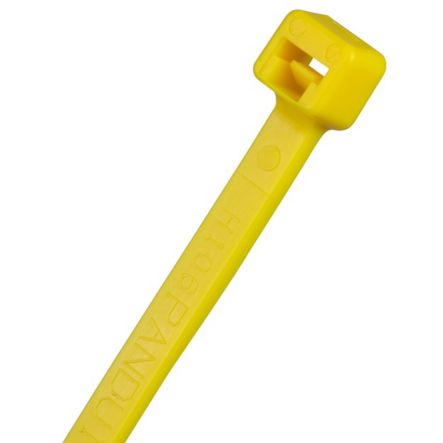

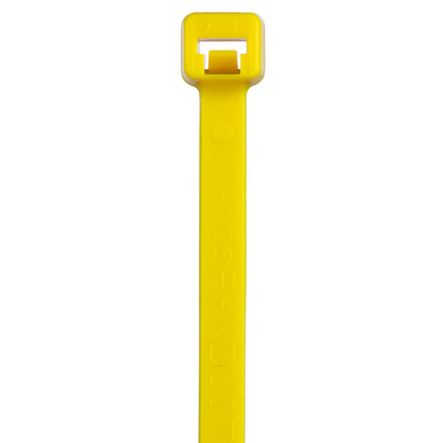

Panduit PLT1.5I-M4Y | Plt1.5I-M4Y Premium Cable Tie
Pan-Ty locking tie, intermediate cross section, 5.6 (142mm) length, nylon 6.6, yellow, bulk package.
Panduit - PLT1.5I-M4Y - Features
- Cable Tie, 5.6";, Intermediate cross section
- For indoor use
- Versatile cable ties can be used in countless applications
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip is easy to pick up from flat suaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PLT1.5I-M4Y - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT1.5I-M4Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1.5I-M4Y |
| Item Description | Plt1.5I-M4Y Premium Cable Tie |
| Product Type | Premium Cable Tie |
| Color | Yellow |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 5.6 |
| Overall Length (mm) | 142 |
| Body Width (In.) | 0.142 |
| Body Width (mm) | 3.6 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 1.38 |
| Maximum Bundle Diameter (mm) | 35 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| Military Cross Reference Number | MS3367-5-4 |
| For Use With | GTS-E, GS2B-E, PTS |
| Application | General |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT1.5I-M4Y - Package Information
| UPC | 07498344414 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1253 |
| Standard Ctn. Quantity | 25000 |
| Standard Ctn. Volume (cf) | 3.1332 |
Panduit - PLT1.5I-M4Y - Videos
| Video 1 | Click to View |
|---|
