Brand: Panduit
|
SKU:
10071206

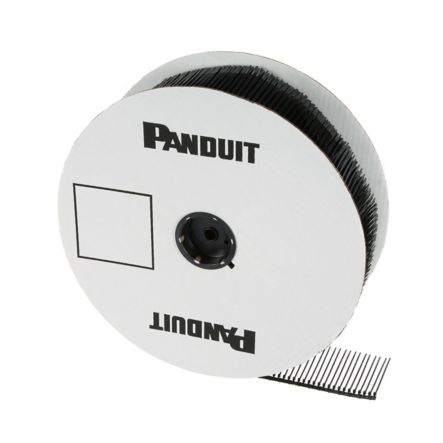

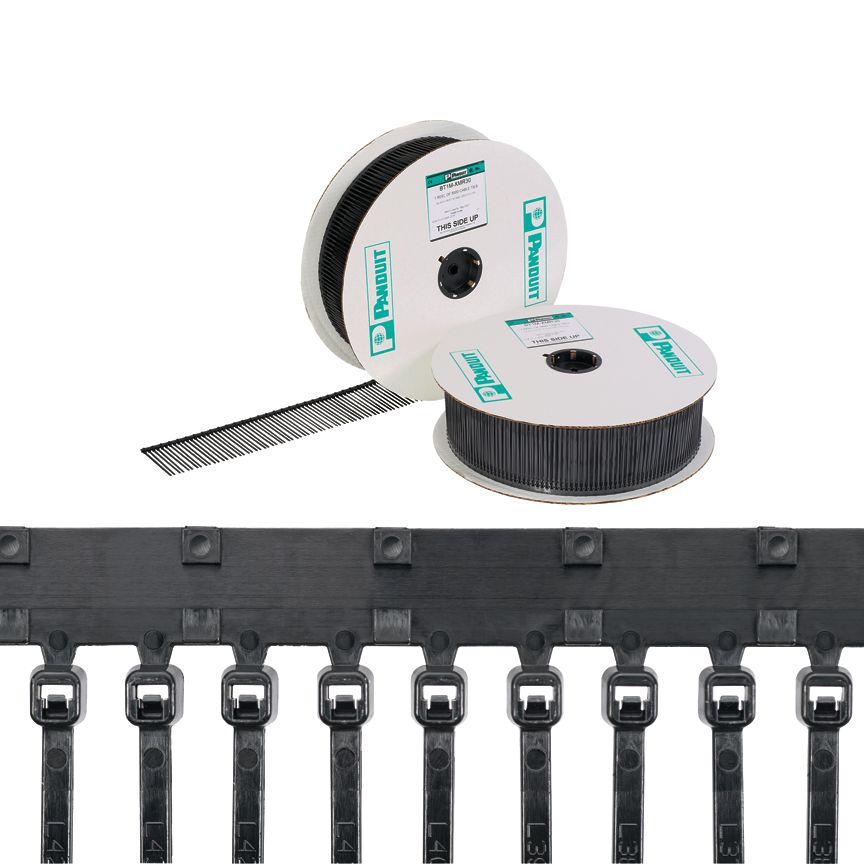

Panduit PLT1.5M-XMR00 | Pan-Ty PLT1.5M-XMR00 Reel-Fed Cable Tie
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT1.5M-XMR00 | Pan-Ty PLT1.5M-XMR00 Reel-Fed Cable Tie
Regular price
$1.46
Unit price
Description
Description
Panduit PLT1.5M-XMR00 | Pan-Ty PLT1.5M-XMR00 Reel-Fed Cable Tie
Reel-Fed cable tie for PAT1.5M system, miniature cross section, 5.6 (142mm) length, military grade weather resistant nylon 6.6, black.
Panduit PLT1.5M-XMR00 Reel-fed Cable Ties, Pat1.5m System, All Nylon 6.6, Black, 5000 Per Reel
Specifications
Specifications
Panduit - PLT1.5M-XMR00 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT1.5M-XMR00 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1.5M-XMR00 |
| Item Description | Pan-Ty PLT1.5M-XMR00 Reel-Fed Cable Tie |
| Product Type | Reel-Fed Cable Tie |
| Sub Brand | Pan-Ty |
| Color | Black |
| Environment | Indoor/Outdoor |
| For Use With | PAT1.5M4.0 System |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 5.6 |
| Overall Length (mm) | 142 |
| Body Width (In.) | 0.1 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.036 |
| Body Thickness (mm) | 0.9 |
| Maximum Bundle Diameter (In.) | 1.31 |
| Maximum Bundle Diameter (mm) | 33.3 |
| Minimum Bundle Diameter (In.) | 0.02 |
| Minimum Bundle Diameter (mm) | 0.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Standards Met | UL Listed, UL Recognized, CSA Certified, CE Compliant, RoHS Compliant |
| Military Cross Reference Number | MS3367-4-0 |
| Number of Ties per Reel | 5 |
| Application | Used For PAT1.5M And PAT1.5M-ATM System |
| Type | CABLES TIES AND ACCESSORIES |
| UNSPSC Code | 39121703 |
Panduit - PLT1.5M-XMR00 - Package Information
| UPC | 07498354357 |
|---|---|
| Standard Package Quantity | 5000 |
| Standard Package Volume (cf) | 1.4359 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 2.8719 |
Panduit - PLT1.5M-XMR00 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
