Panduit PLT1.5S-M | Pan-Ty PLT1.5S-M Cable Tie, PA6.6, 6.2"L, ...
Description
Description

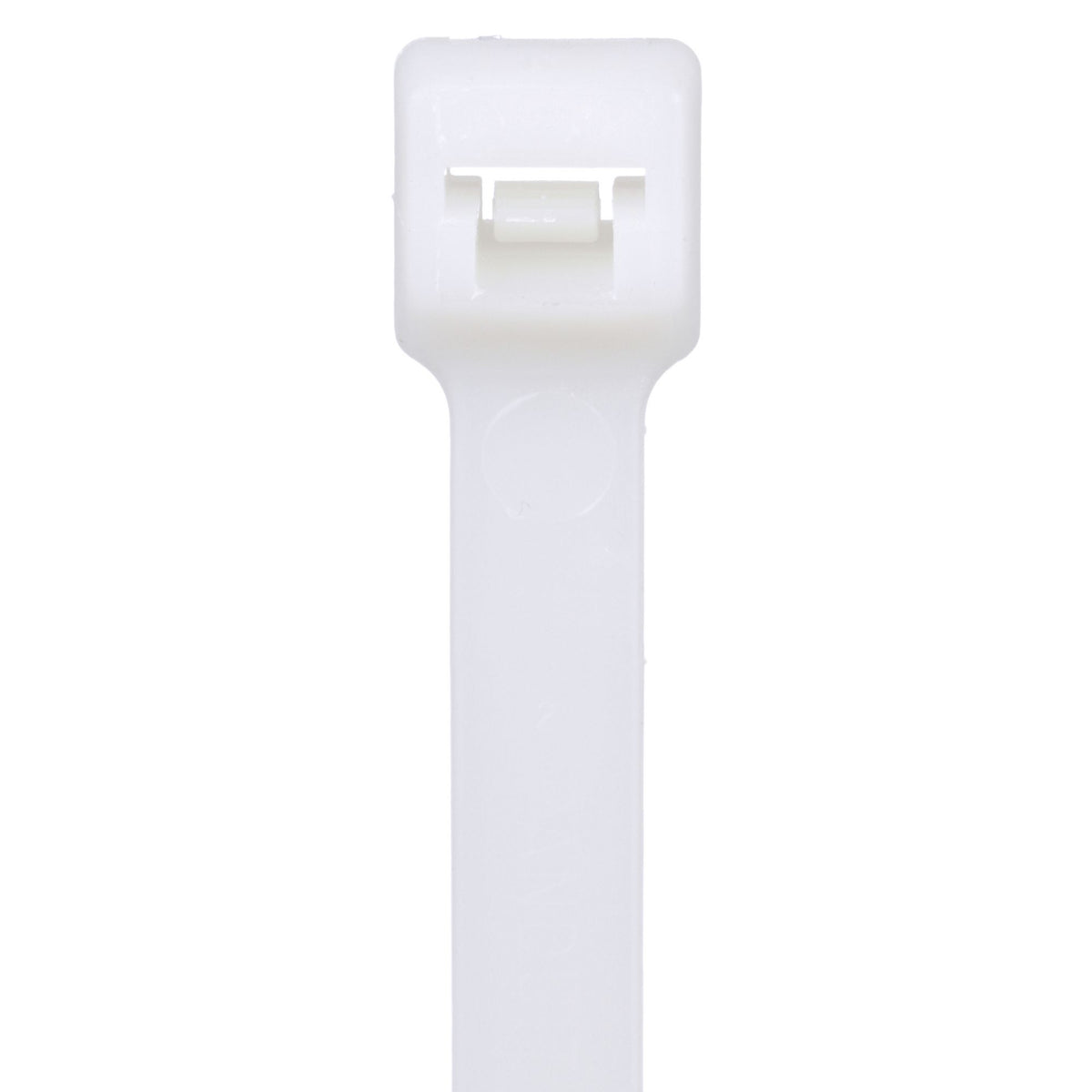

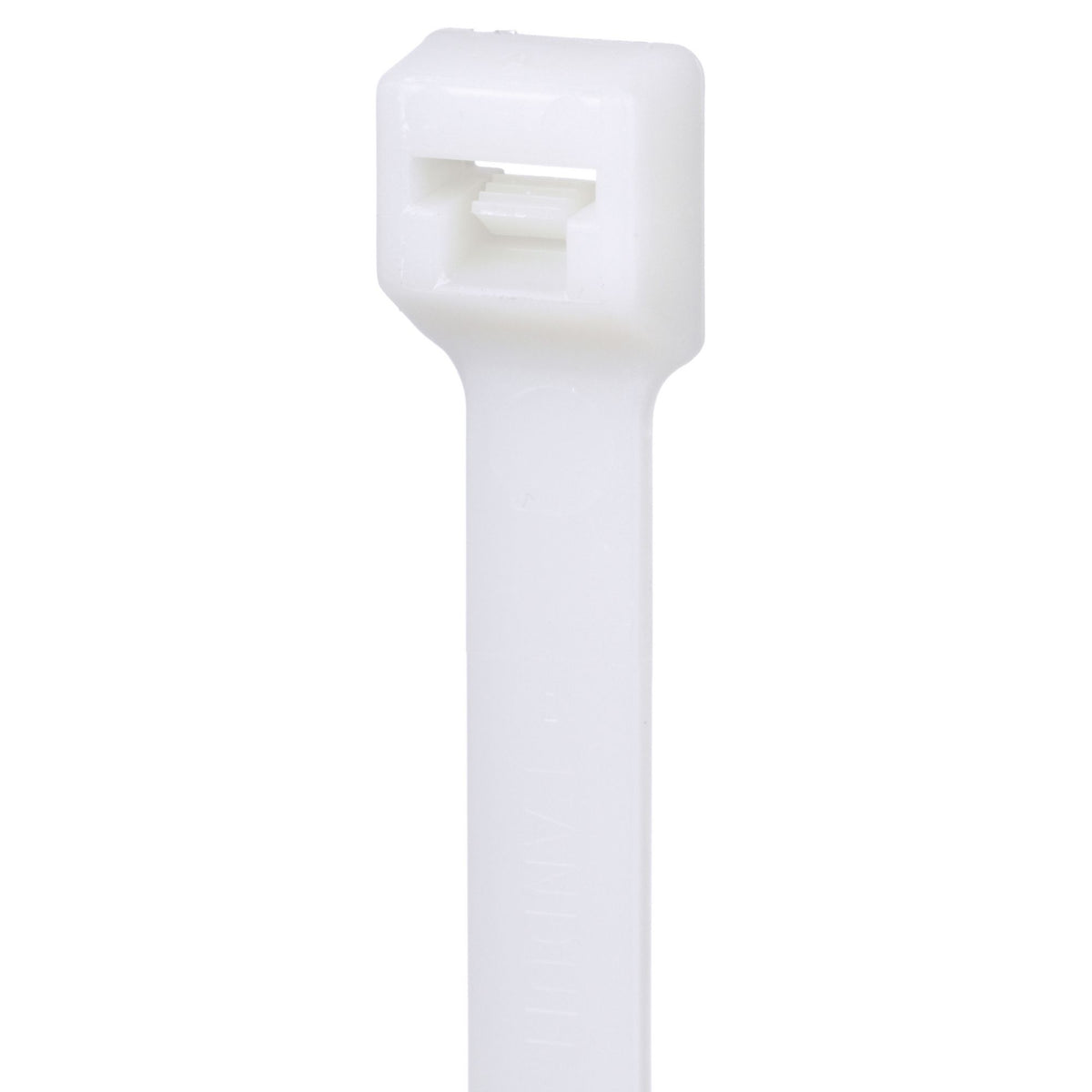

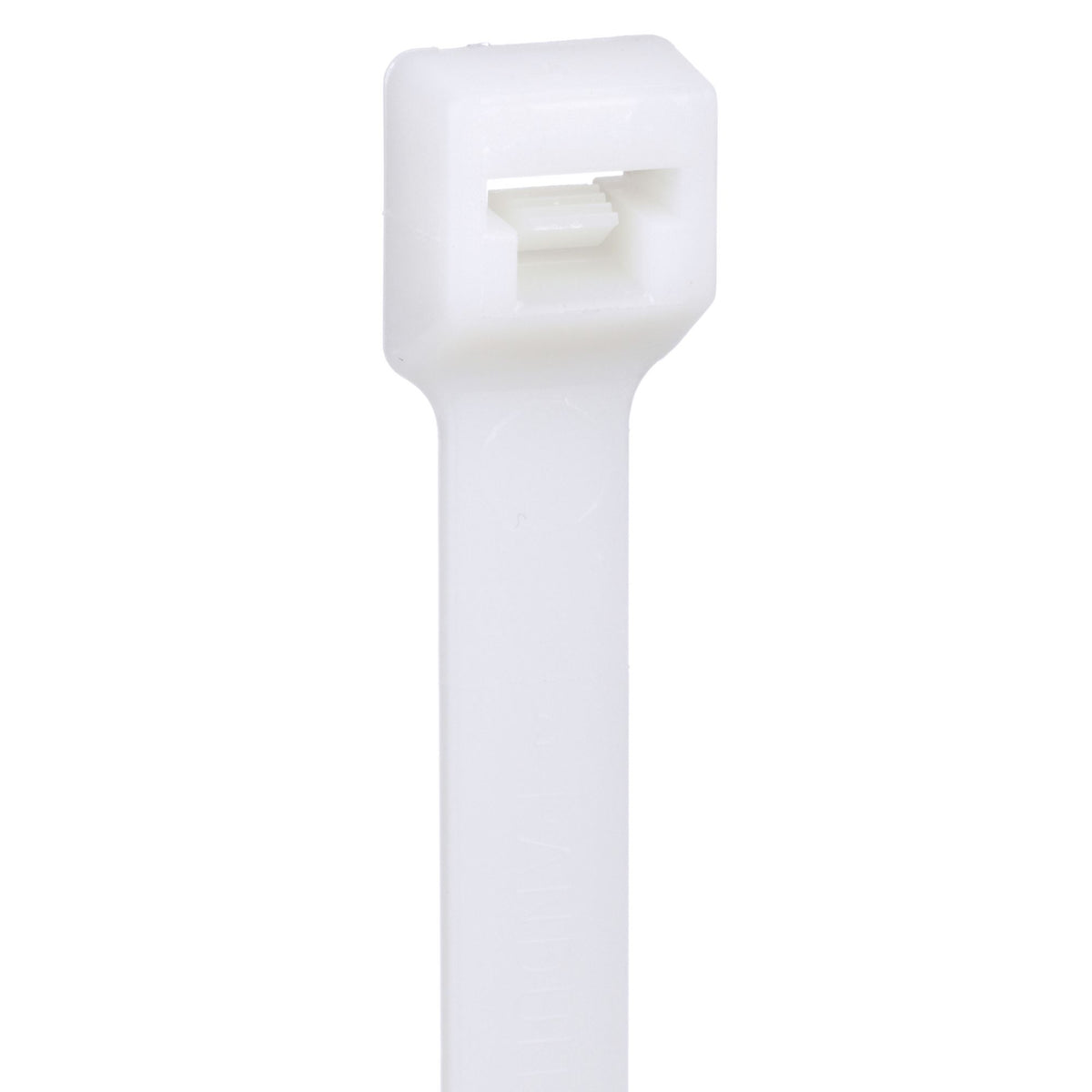

Panduit PLT1.5S-M Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 6.2" (157mm) length. Made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit PLT1.5S-M | CABLE TIE | 6 feet CABLE TIE 50LB 1.50 feet BUNDLE
Specifications
Specifications
Panduit - PLT1.5S-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT1.5S-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1.5S-M |
| Item Description | Pan-Ty PLT1.5S-M Cable Tie, PA6.6, 6.2"L, 50lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 6.2 |
| Overall Length (mm) | 157 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.5 |
| Maximum Bundle Diameter (mm) | 38 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT1.5S-M - Package Information
| UPC | 07498354049 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2164 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 2.1638 |
Panduit - PLT1.5S-M - Videos
| Video 1 | Click to View |
|---|
