Panduit PLT13H-Q | Pan-Ty® Locking Cable Tie
Regular price
$83.55
Unit price
Brand: Panduit
|
SKU:
10083487
Regular price
$83.55
Unit price
Description
Description

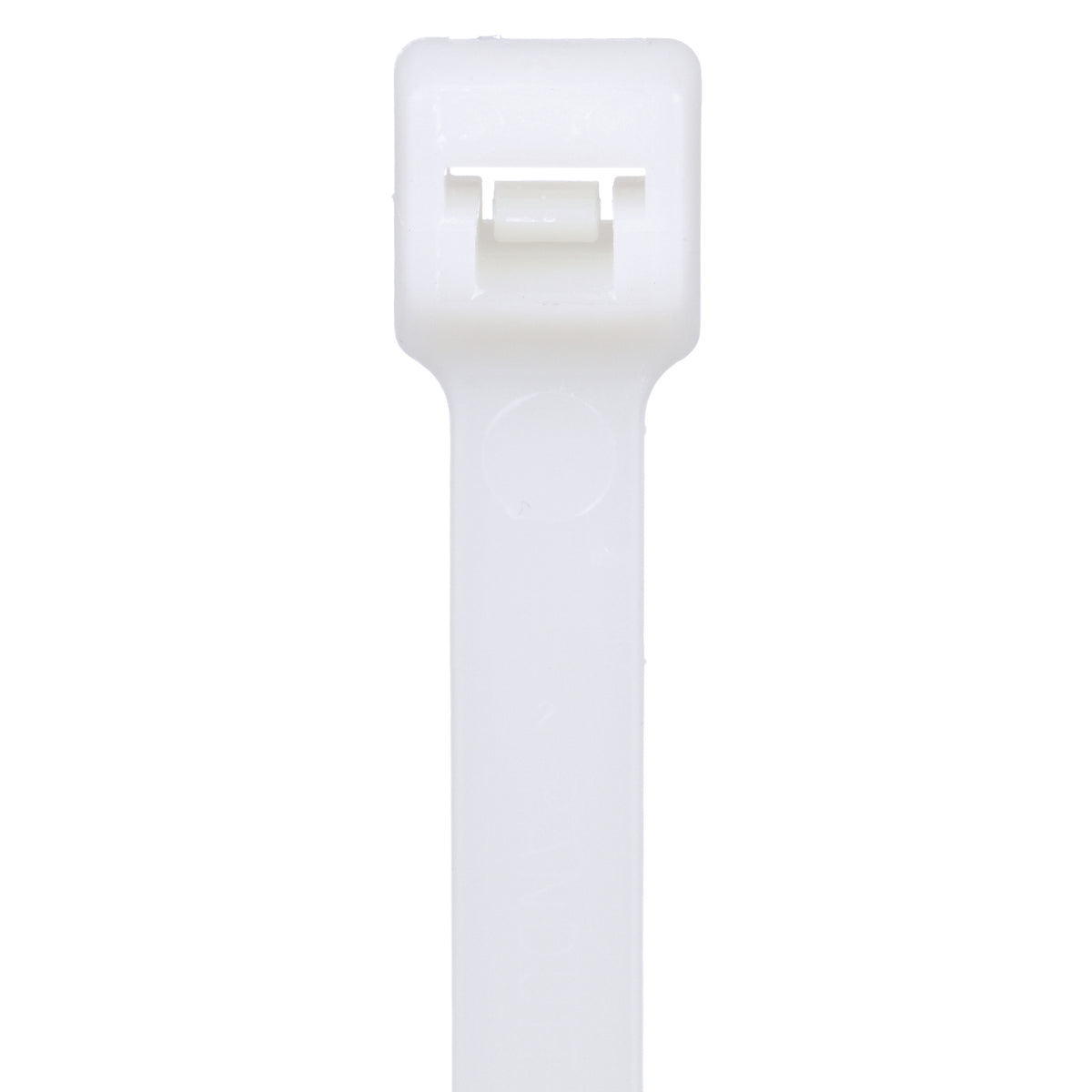

Panduit PLT13H-Q | Pan-Ty® Locking Cable Tie
Panduit Pan-Ty Cable Tie, Heavy, Series: PLT, 43.3 in Length, 0.35 in Width, 0.08 in Thickness, 13 in Bundle Dia, Locking, 175 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Panduit - PLT13H-Q - Features
- 1-piece construction for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
Specifications
Specifications
Panduit - PLT13H-Q - Specifications
| Material Description | Nylon 6.6 () |
|---|---|
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 43.3 |
| Overall Length (mm) | 1100 |
| Body Width (In.) | 0.35 |
| Body Width (mm) | 8.9 |
| Body Thickness (In.) | 0.078 |
| Body Thickness (mm) | 2 |
| Maximum Bundle Diameter (In.) | 13 |
| Maximum Bundle Diameter (mm) | 330 |
| Minimum Bundle Diameter (In.) | 5.5 |
| Minimum Bundle Diameter (mm) | 140 |
| Minimum Loop Tensile Strength (N) | 778 |
| Minimum Loop Tensile Strength (lb) | 175 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498354190 |
Panduit - PLT13H-Q - Package Information
| UPC | 07498354190 |
|---|---|
| Standard Packaging Quantity | 25 |
| Standard Packaging Volume (cf) | 0.1099 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 2.1976 |
Panduit - PLT13H-Q - Videos
| Panduit PLT13H-Q Videos | Click to View |
|---|
