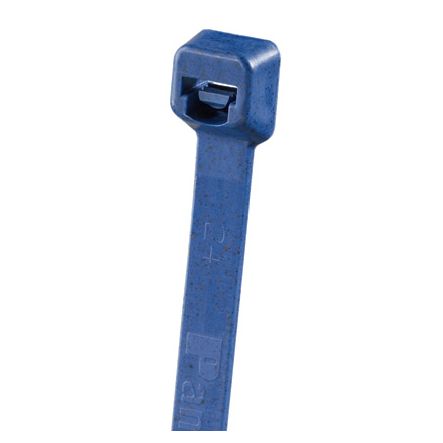

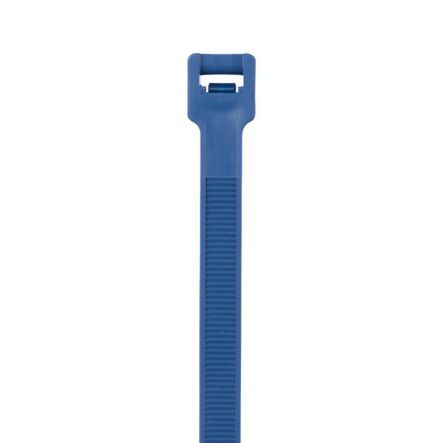

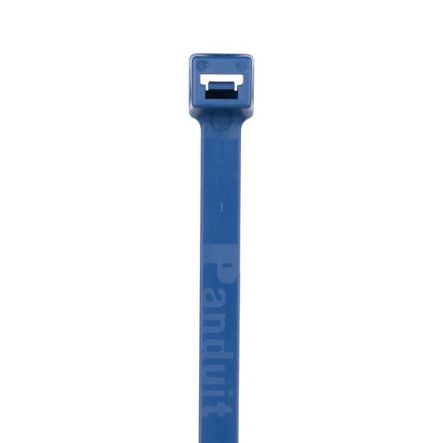

Panduit PLT1M-C186 Cable Tie, 3.9";L (100mm), Miniature, Metal...
Description
Description
Panduit PLT1M-C186 Metal Detectable Cable Ties are designed to help the food beverage and pharmaceutical industries meet product manufacturing safety standards. Featuring metal impregnated material, these metal detectable products are identifiable by metal detection equipment. Addtionally, the distinct dark blue color facilitates quick visual detection. Miniature cross section, 3.9" (99mm) length. Made of Metal Detectable Polypropylene, are dark blue in color and come in packages of 100.
Panduit - PLT1M-C186 - Features
- Cable Tie, 3.9";L (100mm), Metal Detectable Nylon, Miniature cross section, Light Blue
- Metal impregnated material allows identification by metal detectors or x-ray inspection to meet food, beverage and pharmaceutical safety standards by helping to reduce product contamination
- One-piece design with locking wedge provides low thread force and reliable installation to improve productivity and reduce operator fatigue
- Distinct blue color per common industry practices provides easy identification on conveyor belts and in finished products, reducing waste due to product contamination
- Excellent solution for general purpose maintenance and repair applications; ideal for use in control panels and overhead cable runs
- For indoor use
Specifications
Specifications
Panduit - PLT1M-C186 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT1M-C186 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1M-C186 |
| Item Description | Pan-Ty PLT1M-C186 Cable Tie, Dark Blue, Met Det Polypropylene, 3.9"L, 15lb |
| Product Type | Premium Cable Tie |
| Color | Dark Blue |
| Environment | Indoor |
| Material | Metal Impregnated Polypropylene |
| Resistance Properties | Chemical Resistant |
| Overall Length (In.) | 3.9 |
| Overall Length (mm) | 100 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.044 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22 |
| Minimum Bundle Diameter (In.) | 0.13 |
| Minimum Bundle Diameter (mm) | 3.3 |
| Minimum Loop Tensile Strength (N) | 67 |
| Minimum Loop Tensile Strength (lb) | 15 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTS-E, GS2B-E, STS2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT1M-C186 - Package Information
| UPC | 07498311453 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0237 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.2370 |
Panduit - PLT1M-C186 - Videos
| Video 1 | Click to View |
|---|
