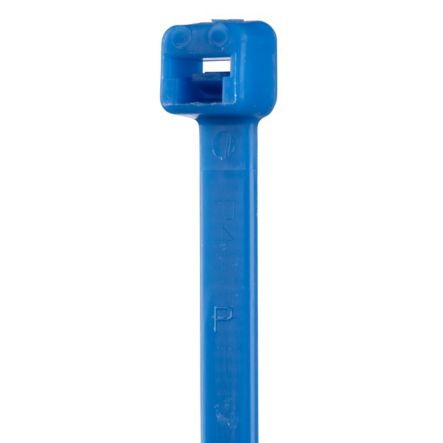

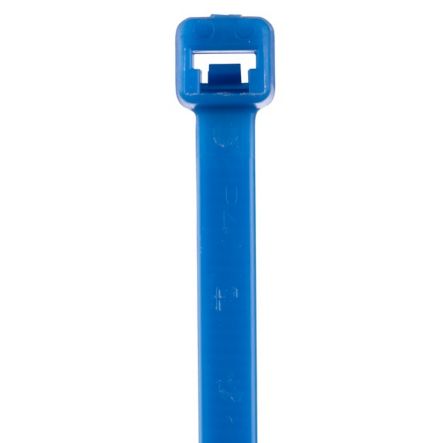

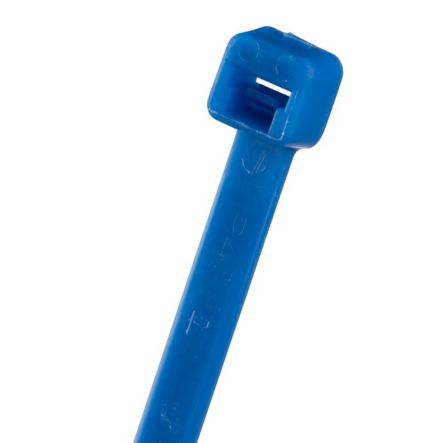

Panduit PLT1M-C6 | Premium Cable Tie
Description
Description
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Pan-Ty metal detectable cable ties and mounts are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. featuring metal impregnated material, these metal detectable products are identifiable by metal detection equipment. Panduit metal detectable products help companies comply with the U.S. food and Drug Administration HACCP* standards and the European Union (EU) hygiene monitoring regulations. Additionally, the distinct blue color facilitates quick visual detection. metal detectable cable ties and mounts are available in either nylon material for general purpose applications or polypropylene material which provides superior resistance to harsh cleaning chemicals. the GT series of tools captures the cut-off tips of ties to help further prevent process stream contamination. the Pan-Ty metal detectable cable ties, cable tie mounts and installation tools deliver a complete bundling solution to help reduce product contamination and loss.
Panduit Pan-Ty Miniature Cable Tie, Cross Section Plenum Rated, 3.9 in Length, 0.1 in Width, 0.04 in Thickness, 0.87 in Bundle Dia, Locking, 18 lb Tensile, -70 to 185 deg F, Nylon 6.6, Blue
Panduit - PLT1M-C6 - Features
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
Specifications
Specifications
Panduit - PLT1M-C6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1M-C6 |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | Blue |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 3.94 |
| Overall Length (mm) | 99 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.043 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498354725 |
Panduit - PLT1M-C6 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PLT1M-C6 - Videos
| Panduit PLT1M-C6 Video 1 | Click to View |
|---|
