Panduit PLT1M-C702Y | Pan-Ty PLT1M-C702Y Cable Tie, Maroon, HALAR, ...
Description
Description

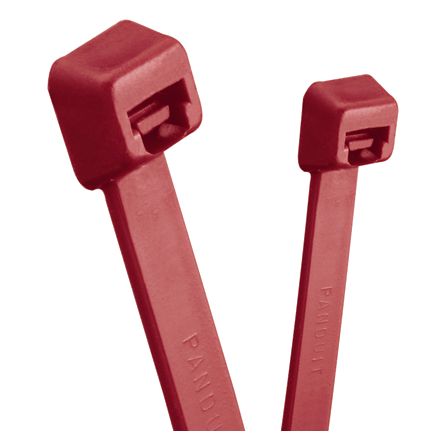

Panduit PLT1M-C702Y Locking Cable Ties are suitable for use in plenum or air handling spaces. With low smoke density and an excellent flammability rating of UL 94V-0, they are an accepted solution for bundling qualified cable without conduit in air handling space applications. For indoor or outdoor use with greater resistance to damage caused by ultraviolet light. Miniature cross section, 4.0" (102mm) length. Made of HALAR, a distinctive maroon color, and come in packages of 100.
Panduit - PLT1M-C702Y - Features
- Cable Tie, 4.0";, Miniature cross section
- UL Listed for use in plenum or air handling spaces per NEC, Section 300-22 (C) and (D)
- Low smoke density and excellent flammability rating of UL 94V-0
- Commonly accepted solution for bundling qualified cable without conduit in air handling space applications
- Applications include nuclear plants, chemical environments, telecommunications equipment, aerospace, and high and low temperature environments
- Distinctive Maroon color identifies material
- Greater resistance to damage caused by ultraviolet ligt - indoor or outdoor useHALAR is a registered trademark of Solvay Solexis, Inc.
Specifications
Specifications
Panduit - PLT1M-C702Y - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT1M-C702Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1M-C702Y |
| Item Description | Pan-Ty PLT1M-C702Y Cable Tie, Maroon, HALAR, Heat and UV, 4"L, 18lb, PK100 |
| Product Type | Premium Cable Tie |
| Color | Maroon |
| Environment | Plenum |
| Material | HALAR |
| Resistance Properties | Heat and UV Resistant |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 102 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.043 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22 |
| Minimum Bundle Diameter (In.) | 0.24 |
| Minimum Bundle Diameter (mm) | 6.1 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT1M-C702Y - Package Information
| UPC | 07498344735 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0237 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.2370 |
Panduit - PLT1M-C702Y - Videos
| Video 1 | Click to View |
|---|
