Panduit PLT1M-L3-2 | Premium Cable Tie
Regular price
$9.45
Unit price
Brand: Panduit
|
SKU:
104860
Regular price
$9.45
Unit price
Description
Description

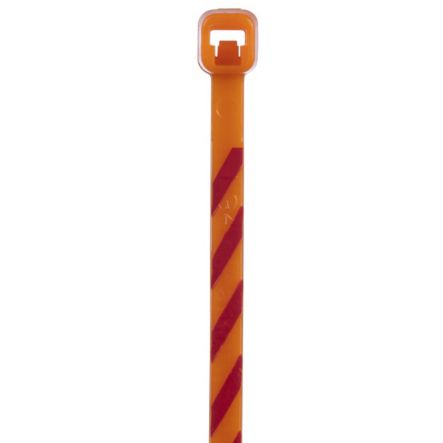

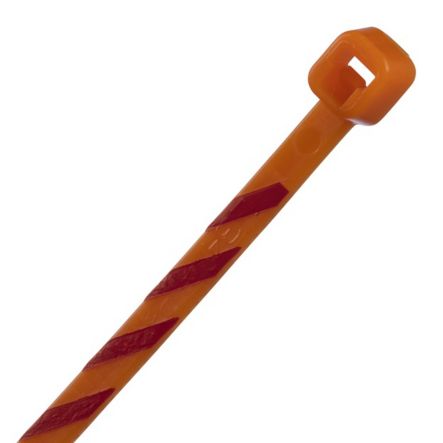

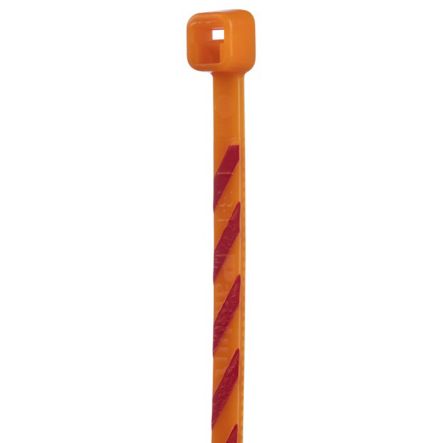

Panduit PLT1M-L3-2 | Premium Cable Tie
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Pan-Ty locking tie, miniature cross section, 4.0" (102mm) length, nylon 6.6, orange/red stripe.
Panduit Pan-Ty Miniature Cable Tie, Miniature, Series: PLT, 4 in Length, 0.1 in Width, 0.036 in Thickness, 0.82 in Diameter Bundle, Lock Mechanism: Locking, 18 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Orange/Red Stripe
Panduit - PLT1M-L3-2 - Features
- Nylon material for indoor use

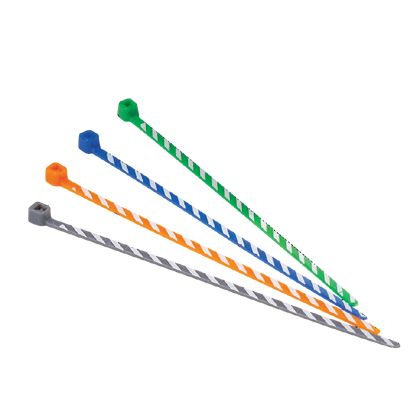

- Striped Pan-Ty(TM) Cable Ties in 25 color combinations match the universally accepted Even-Count Color Code
- Solid color ties are available for identification of "Super Groups" in cable containing more than 600 pairs
- Each 50-piece package fits in the Pan-Pouch(TM) Kit or pocket pouch
Specifications
Specifications
Panduit - PLT1M-L3-2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1M-L3-2 |
| Cable Tie Diameter | 4" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | Orange/Red |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 102 |
| Body Width (In.) | 0.1 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.036 |
| Body Thickness (mm) | 0.9 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498353971 |
Panduit - PLT1M-L3-2 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PLT1M-L3-2 - Videos
| Panduit PLT1M-L3-2 Video 1 | Click to View |
|---|
